Banc òptica QLG-004. Complet amb accessoris
Referència: 22010

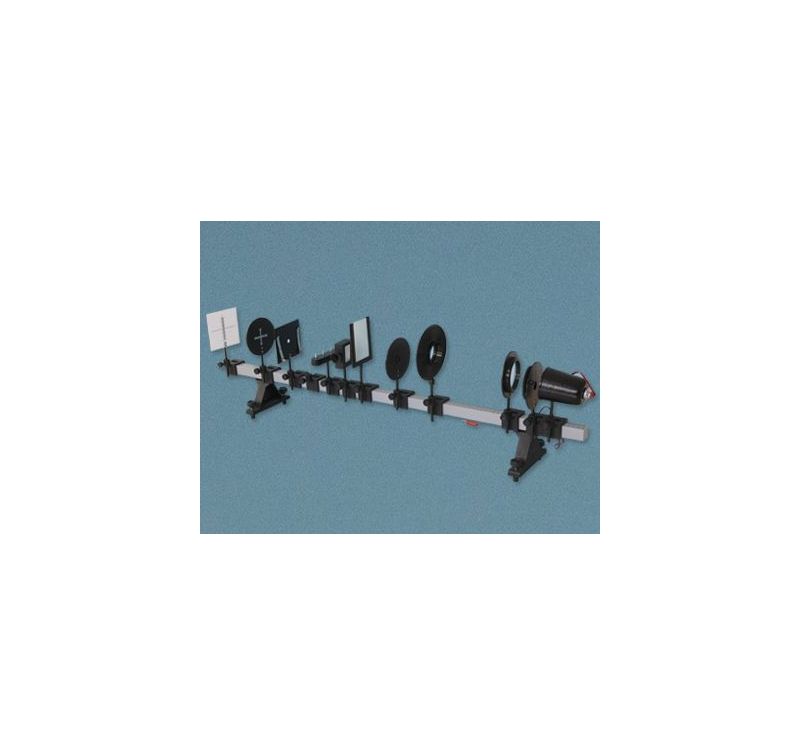

Optical bench Nahita QLG-004. Simple glass lenses 50 mm

158,00€ Base imp.
191,18€ amb IVA
Quantity


Free shipping

from €120 + VAT


Shipping

in 24 - 72 hours


Payment

Visa or PaypalCard - Paypal - Transfer - Direct Debit

  • 1| Light source: 12V/24W halogen lamp located on a support made of heat-resistant material. With 2 flexible cables with 4 mm banana connectors for connection to the power supply.
  • 2| Circular flat glass mounted in a metal frame
  • 3| Lens holder: allows you to accommodate 50 mm diameter lenses
  • 4| Black circular screen with a central opening of 10 mm diameter covered by a 1.5 mm pore mesh.
  • 5| Diaphragm: circular plate on which a rotating disc with 6 holes of different opening is mounted.
  • 6| Counted frosted glass display in a metal frame
  • 7| Grid support: rectangular plate with a circular opening in the center and with two clips to hold the different grids.
  • 8| Plate with cross slots with arrowheads: allows the image of arrowheads to be projected.
  • 9| Jolly photometer: a thin sheet of aluminum sandwiched between two rectangular acrylic prisms of equal size and mounted in a plastic frame. A hole on each side allows you to differentiate between the light intensity of two light sources
  • 10| Needle holder: four needles mounted in a line on a holder.
  • 11| Receiving screen: white rectangular screen with two printed perpendicular lines, one of them with a graduation of 60 mm in a vertical direction. This instrument allows experiments related to optics to be carried out such as image formation, reflection/refraction through optical elements, etc.
