Basic inclined plane QLB-001. Complete with accessories

SPECIFICATIONS

Instrument designed for the study of the concepts of movement on an inclined plane and its relationship with friction.
Its total metal construction provides durability and robustness to the device.

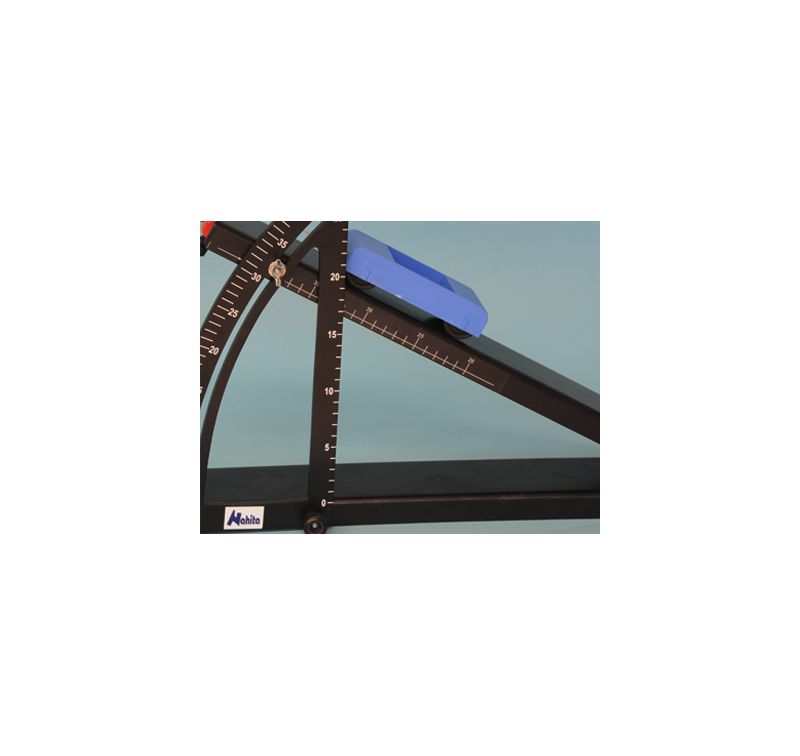

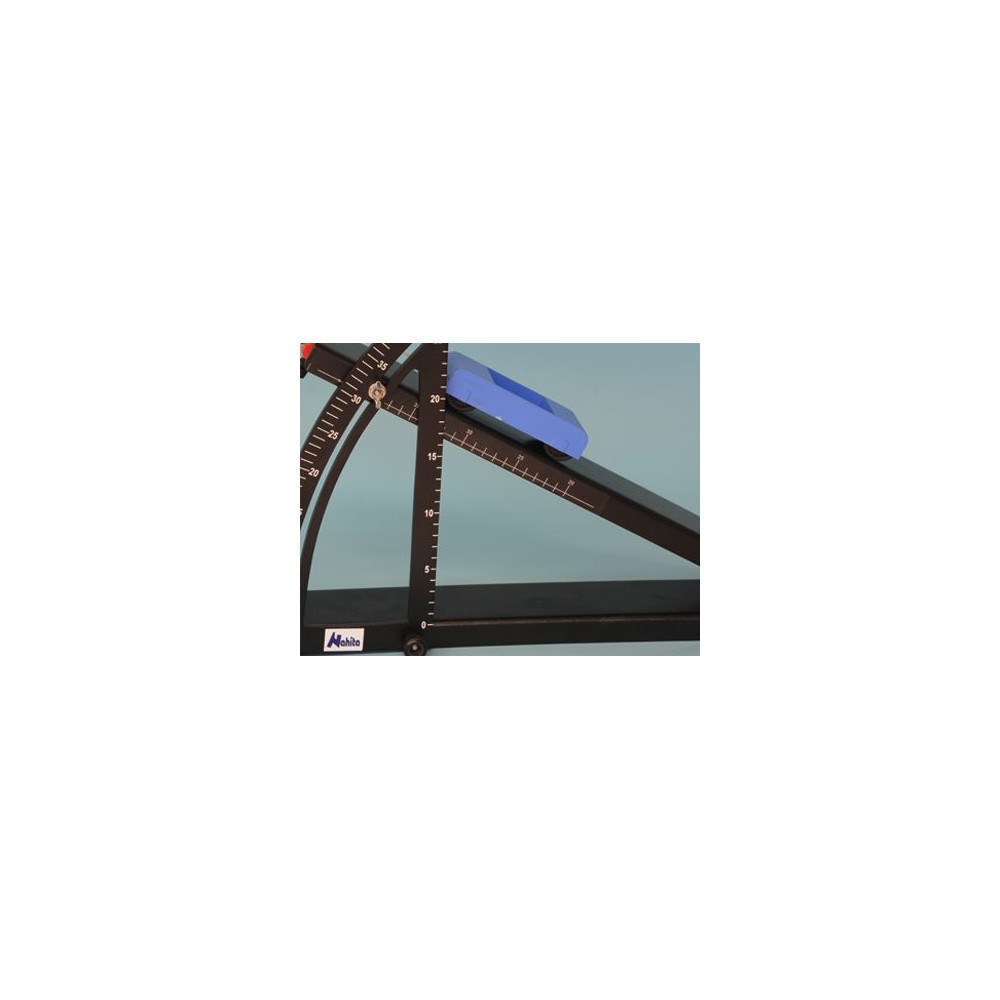

Composed of 2 metal plates joined by a hinge at one end; one of the plates is used as a base and the other as an inclined plane.
The plate that acts as an inclined plane has on one side a graduated scale of 20-40 cm (divisions every 1 cm) to measure the linear distance along its length and can be inclined and fixed at any angle from 0 to 40º with respect to the horizontal.
A vertical scale of 0-25 cm is also printed to be able to measure the height of the inclined plane at any point.

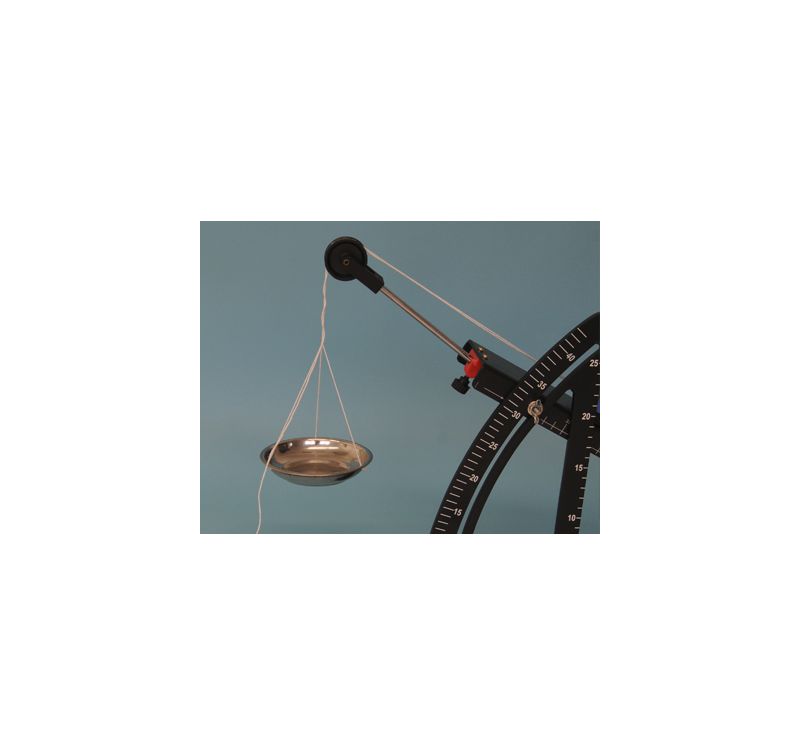

The end of the inclined plane has an adjustable pulley from which masses can be suspended, a plate for weights, etc.
The apparatus is completed with a plastic cart with a hook, a set of weights (including 1x100 g, 1x50 g and 1x20 g) and a plate with a string of negligible mass.
