Physics Team 3B SEA 1008531. Optics, 38 experiments

Set of apparatus for carrying out 38 experiments by students of geometric optics. In a stable plastic box with formed foam insert for the devices and with transparent lid. Includes CD with experimentation instructions. The experiments are carried out in a small space and yet clearly, on the optical bench that is delivered with the equipment. Alternatively they can be mounted on the SEA 1000789  (U8408035) base plate. In both cases, the optical components are arranged by means of sliding-free magnetic attraction. The supplied overlay masks predetermine the positions of the components.

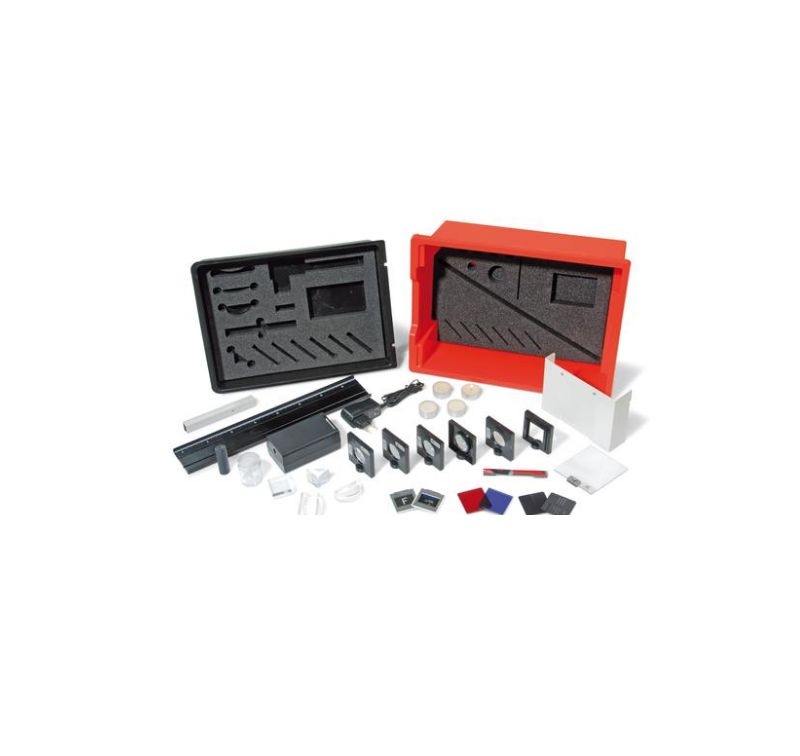

Scope of delivery:
1 Optical bench
1 Optical lamp, 5 V, 2 W
1 Plug-in power supply, 100 – 240 V, 50/60 Hz
4 Tea candles
1 Plastic jar
1 Magnetic adhesion diaphragm support
1 F diaphragm
1 Diaphragm with triple and quintuple slit
1 Diaphragm with one slit
1 Object for projection
1 Chrome filter, red
1 Chrome filter, blue
1 Acrylic plate with support
1 Semi-round body
1 Divergent lens, flat model
1 Converging lens, flat model
1 Rectangular prime
1 Parallel-sided plate
1 Shadow bodies
1 Flexible mirror, magnetic adhesion
1 Projection screen / inclined table
2 Lenses, f = +50 mm
1 Lens, f = +100 mm
1 Lens, f = +300 mm
1 Lens, f = -100 mm
1 Set of masks to be superimposed

Includes 38 experimentation guides for optics:

• Light propagation, light beam, light ray
• Transparency to light
• Light and shadow
• Shadow and gloom
• Reflection in a plane mirror
• Convergence of light in a concave mirror
• Reflection and passage of rays in a concave mirror
• Reflection and passage of rays in a convex mirror
• Properties of images in a plane mirror
• Passage of light from air to glass / Determination of the refractive index
• Passage of light from glass to air / Determination of the refractive index
• Determination of the limiting angle of total reflection (glass in air)
• Passage of rays in a glass plate with parallel planes, laws
• Passage of rays in a glass prism
• Total reflection in a prism
• Passage of light through a converging lens
• Determination of focal length (converging lens)
• Principal rays (converging lens)
• Passage of rays through a divergent lens
• Determination of focal length (divergent lens)
• Principal rays (divergent lens)
• Passage of light through a lens system
• Image properties (convergent lens)
• Image size and lens equation
• Image aberration in converging lenses
• Image generation in the eye
• Myopia
• Hyperopia
• Astigmatism
• Camera
• Slide projector
• Microscope
• Galileo Telescope
• Kepler Telescope
• Terrestrial telescope
• Spectral decomposition of light
• Recomposition of spectral colors
• Additive mix of colors, complementary colors

Includes 38 experiment guides for optics.
