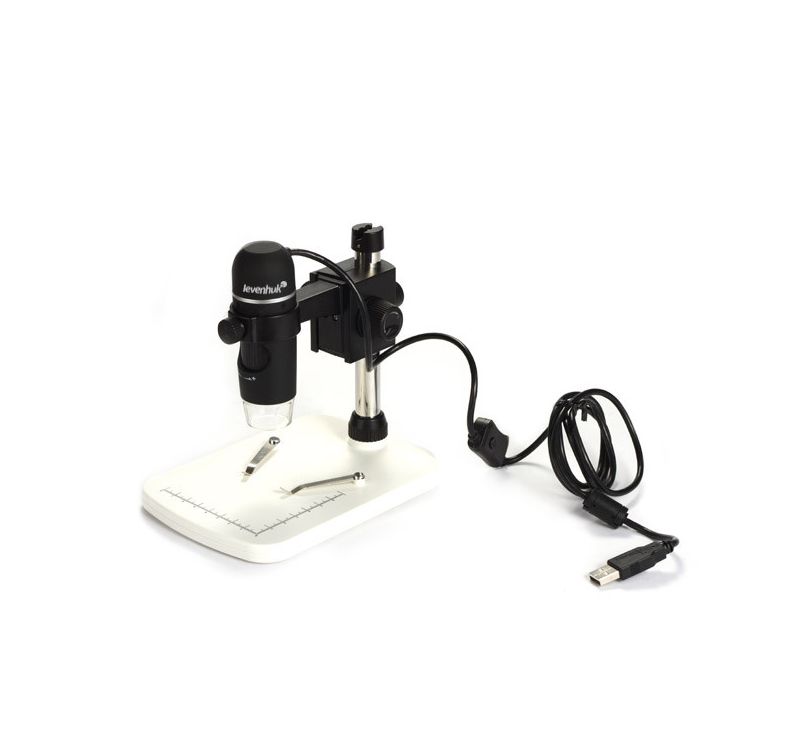

Levenhuk DTX 90 USB digital microscope. 5 Mp sensor (10x-300x)

Modern digital microscope designed for precision work. Equipped with a 5Mpx camera and USB connection, it is capable of offering up to 300x magnification. It comes standard with a column support with precision focus, and a stage equipped with a measurement scale (8 cm on the X axis and 7 cm on the Y axis) and the two typical microscopy clips to fix the sample under the camera.

The Levenhuk DTX90 will allow you to take photos and record videos of the observed samples with good resolution and excellent image quality. The microscope connects to a PC or laptop via a standard USB 2.0 connector. Studying the samples and capturing and editing images is easily done using a very intuitive processing program that is included in the kit. In addition to the ability to take and process images and videos, the software is also capable of measuring linear dimensions, perimeters, radii and different angles in the observed samples.

The Levenhuk DTX 90 is very simple to use, and does not require prior knowledge of microscopy. Thanks to its compact size, it is highly recommended for home use. The microscope can also be used freehand, once removed from its precision support.

The surface of the microscope is covered with rubber, offering a pleasant and safe touch, as slipping is avoided.

To ensure perfect visualization of the sample, the microscope has 8 white LEDs, whose illumination level can be conveniently adjusted.

Excellent working distance at low magnification. For users who need to manipulate samples, the DTX 90 offers a generous working distance if low magnification is used. At 25x there is a 6cm margin, at 10x there is a 10cm distance, and at 5x the working margin is 20cm.

Technical specifications

• Glass optics
• Magnifications 10x-300x
• Manual focus, 0-150mm
• Black rubber lined casing
• Lighting 8 white LEDs
• Brightness adjustment
• Powered by USB cable
• Resolution 5 Megapixels
• Video Capture
• Image format: *.jpeg
• Image processing software, with measurements
• USB 2.0 connection
• Requirements Windows XP/Vista/7/8, Mac 10.6-10.8 minimum P4 1.8, GHz, 256 Mb RAM. 32 Mb video card, USB 2.0 port, CD-ROM
• General use product. It can be used by children over 3 years old.
• Software languages: English, German, French, Spanish, Korean, Russian
• Video format: *.avi
• Maximum resolution: 2592x1944, 2048x1536, 1600x1200, 1280x960
