It has 4 environmental sensors integrated into the console itself: light, sound, humidity and atmospheric pressure.
This console has the possibility of working with or without a computer connection for data collection, so it can be used as a desktop meter.

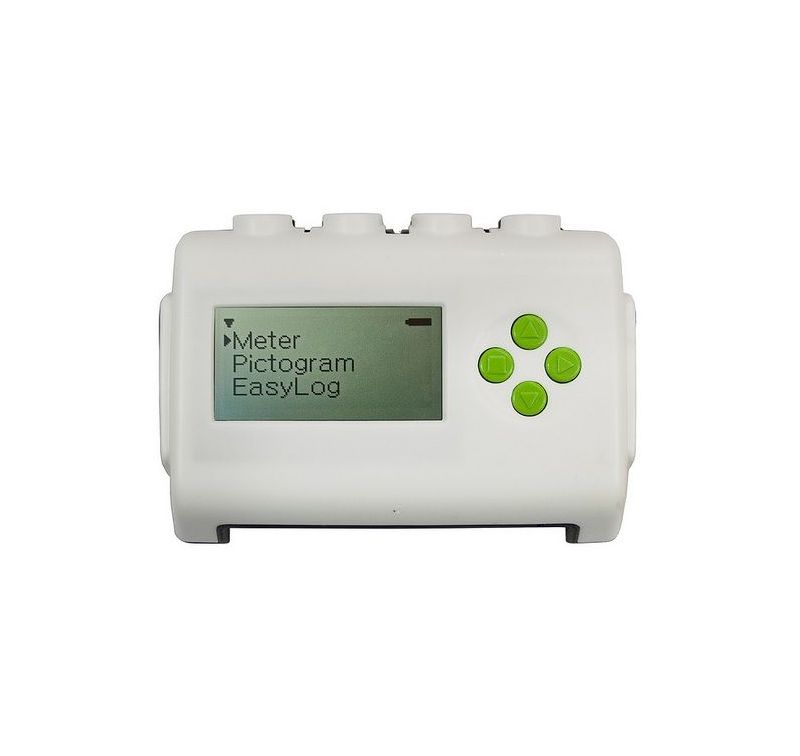

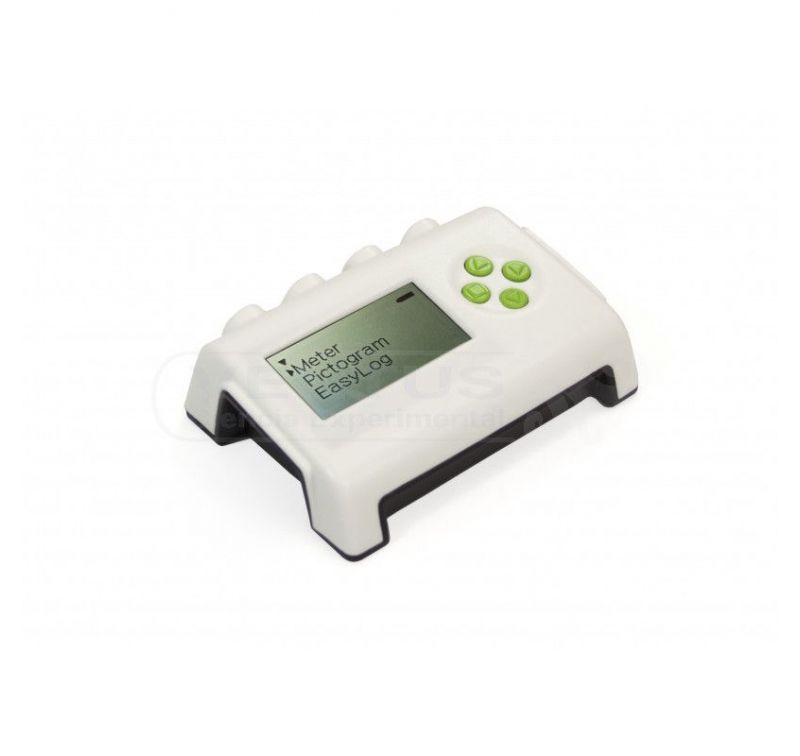

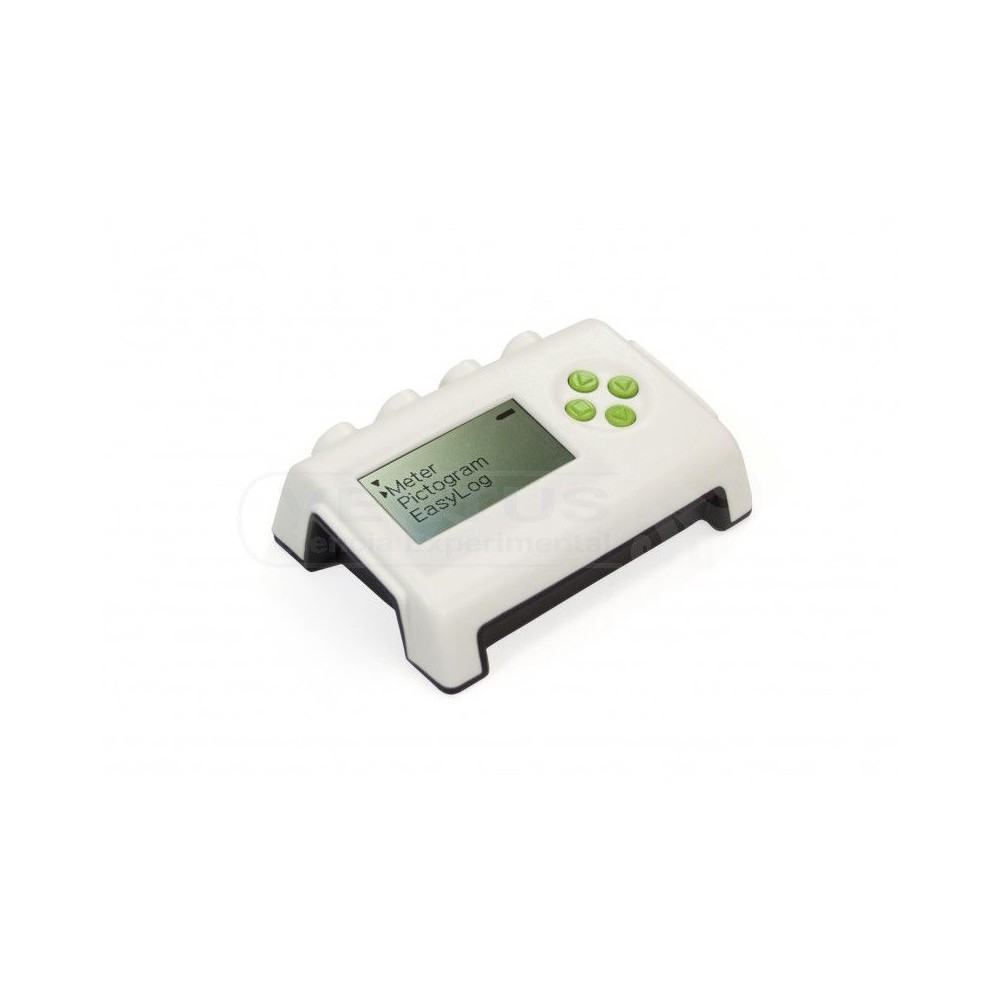

The measurements can be stored in memory and later transferred to the PC. It has an 8-line LCD display in which the sensor measurements are shown. It has inputs for connecting up to 4 external sensors (analog and digital). Identification and automatic calibration of sensors when connected. Sampling rate of up to 50,000 measurements per second (20 µs between measurements). Digital time measurement from A to B using photogates with an accuracy of 4 µs. Connection to PC via USB port. Internal rechargeable lithium batteries that allow data collection without connection to a PC for 14 days without the need for recharging. Internal memory to store sets of measurements.

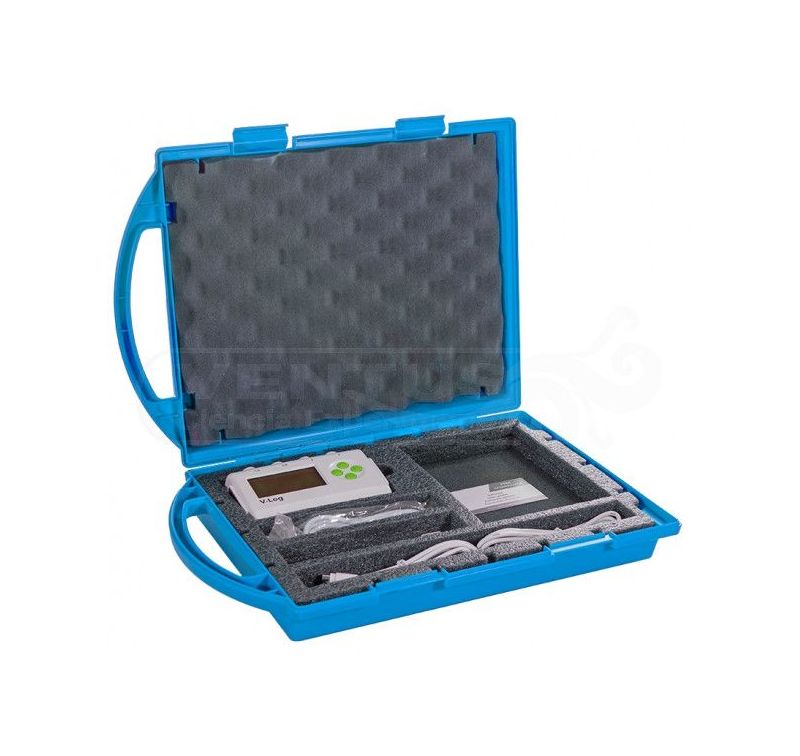

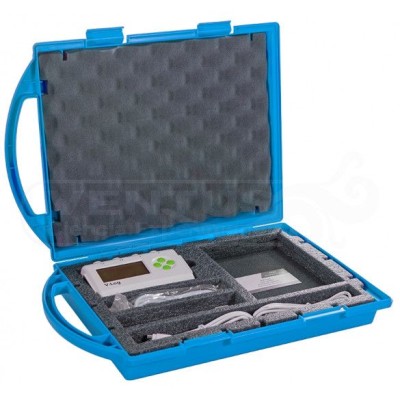

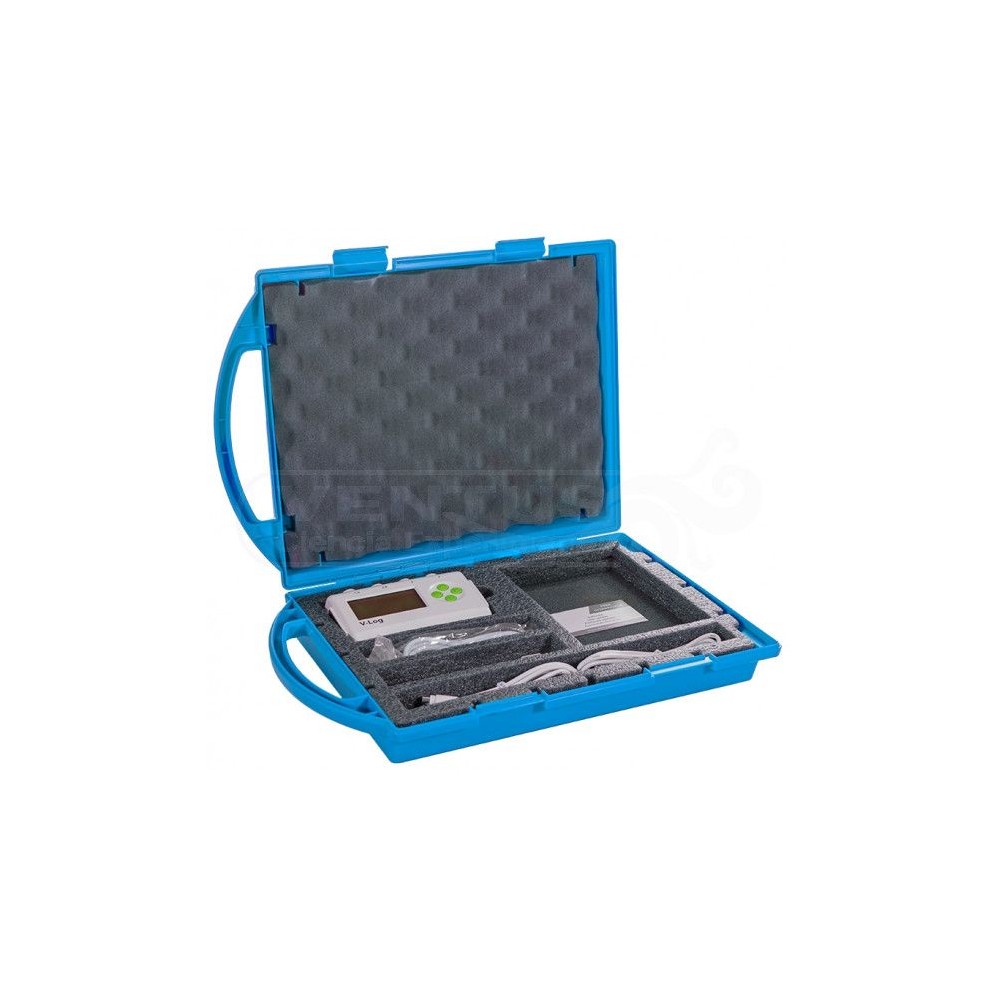

Supplied: V-Log4 console, USB cable, 4 cables for connecting sensors (2 of 150 cm and 2 of 15 cm), storage case.

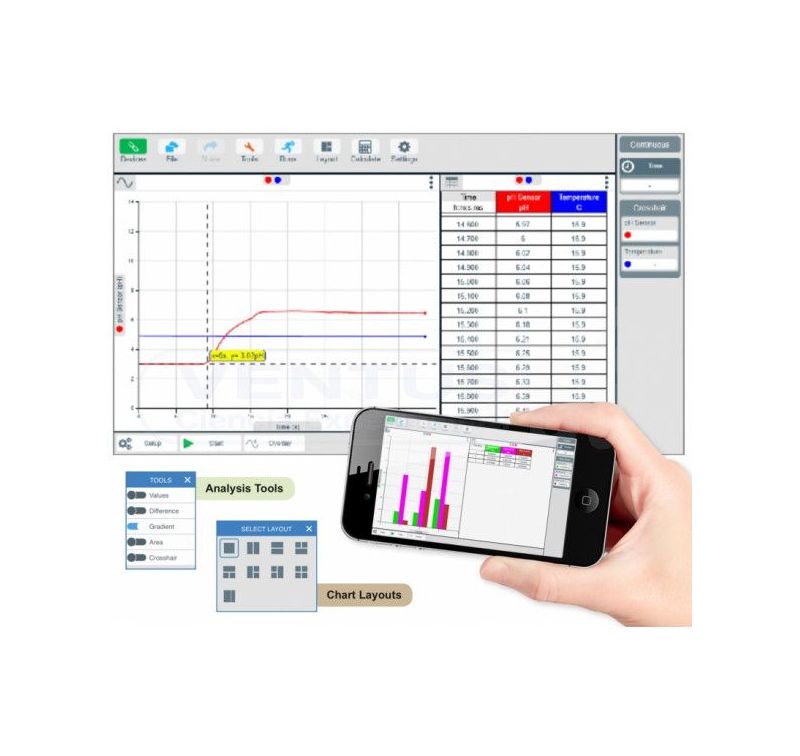

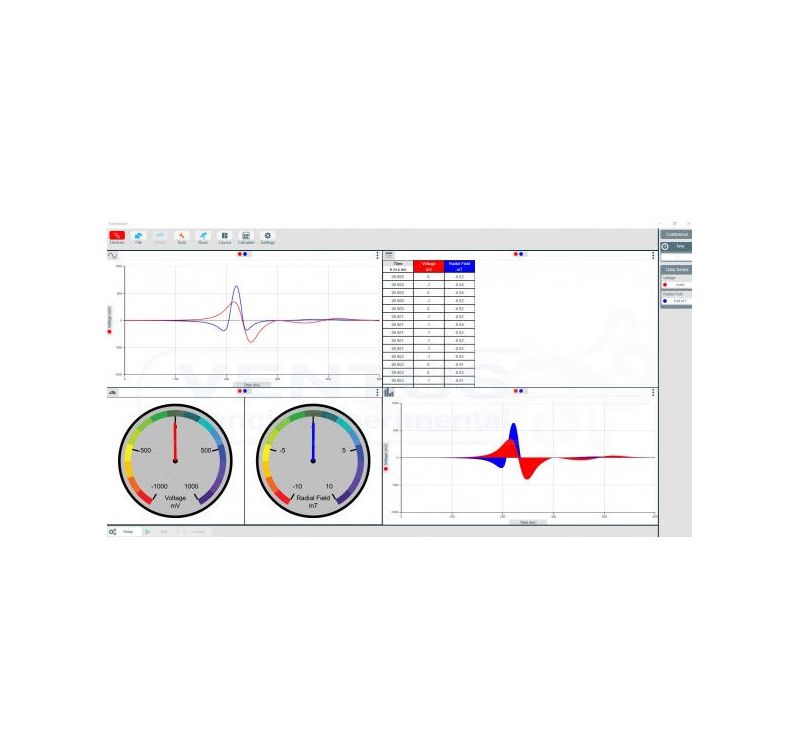

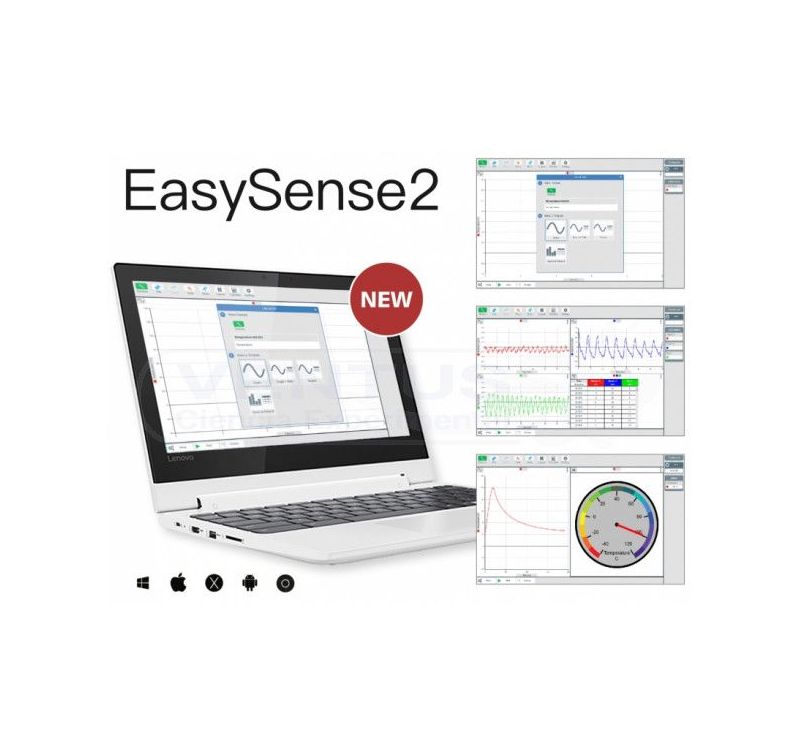

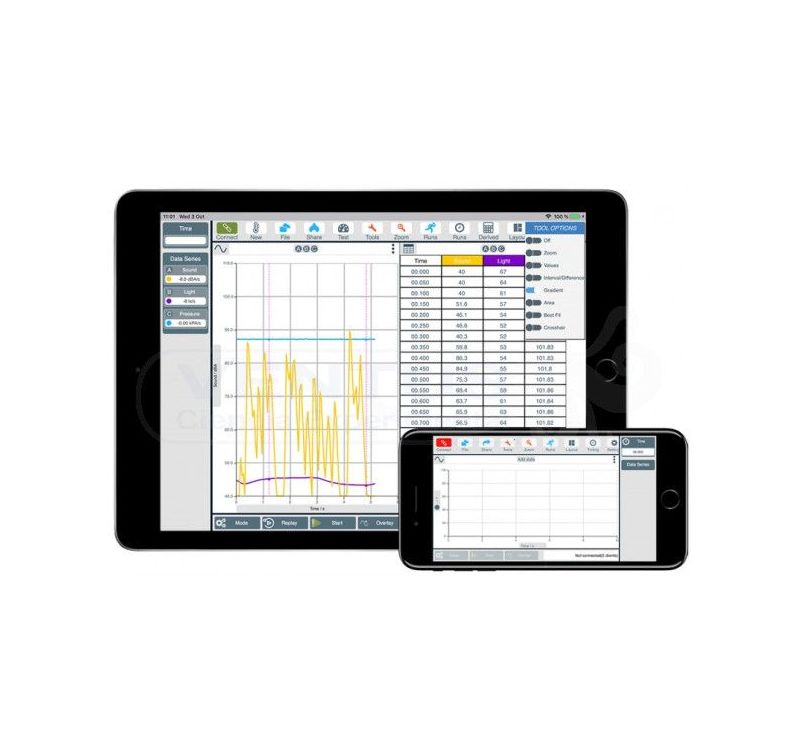

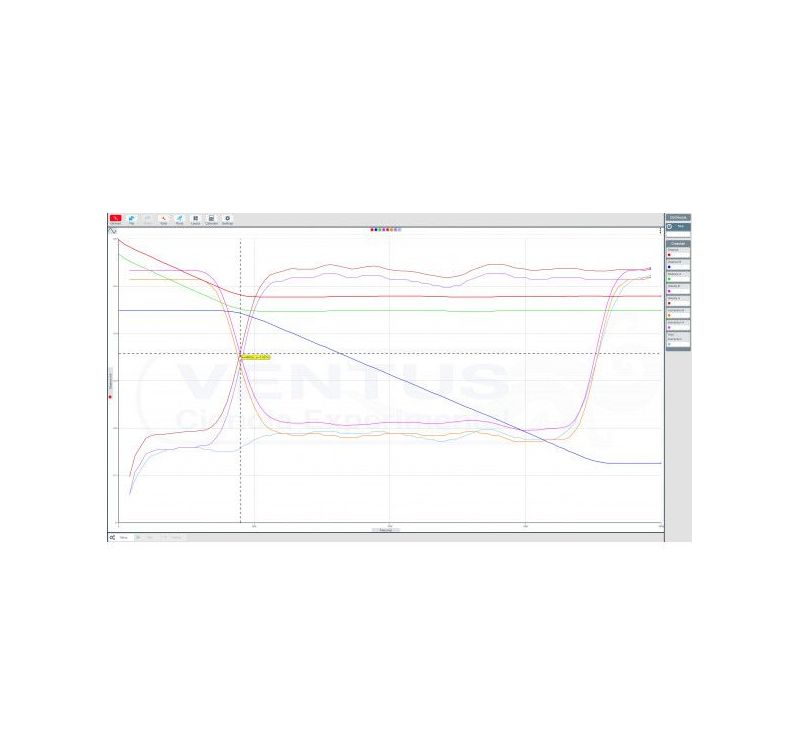

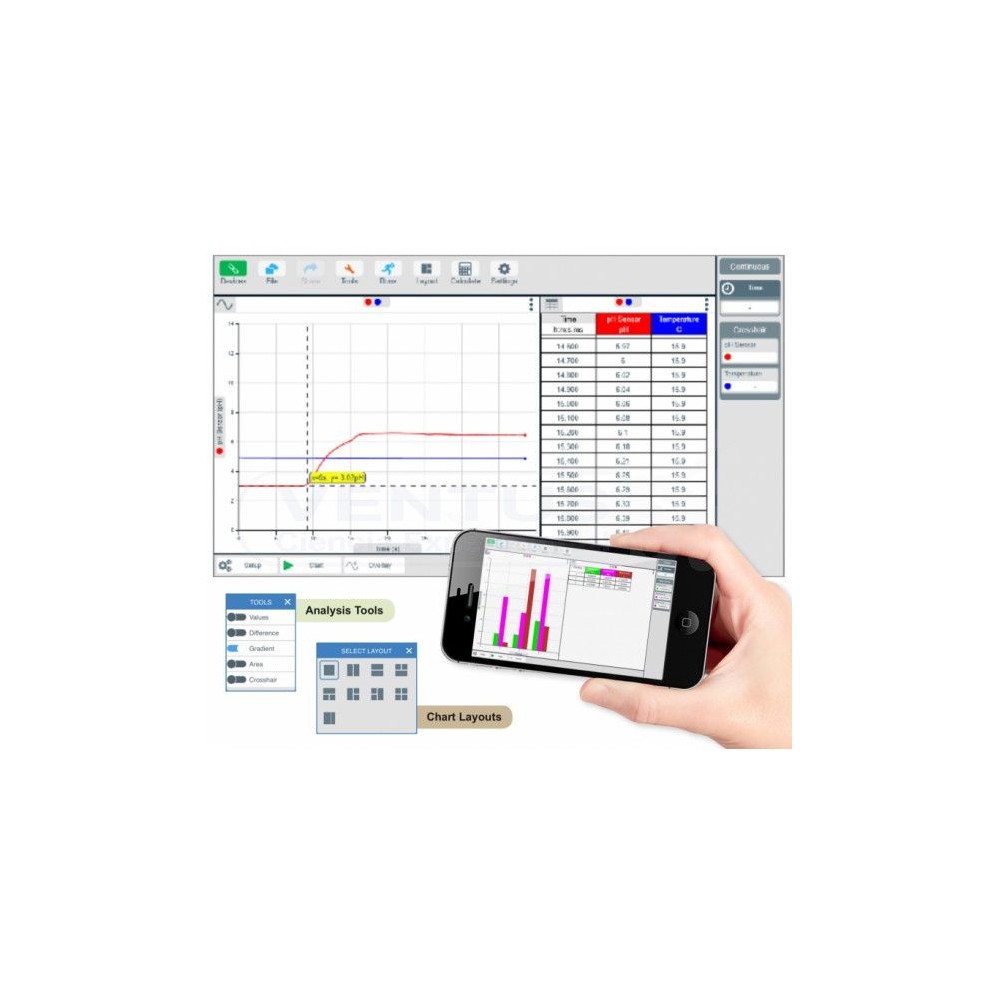

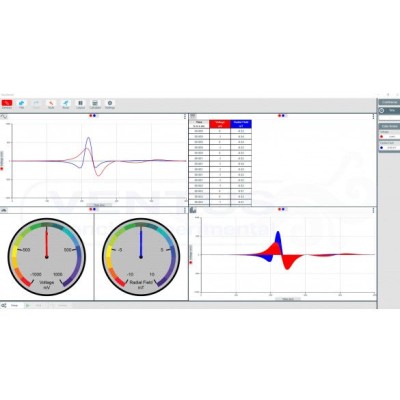

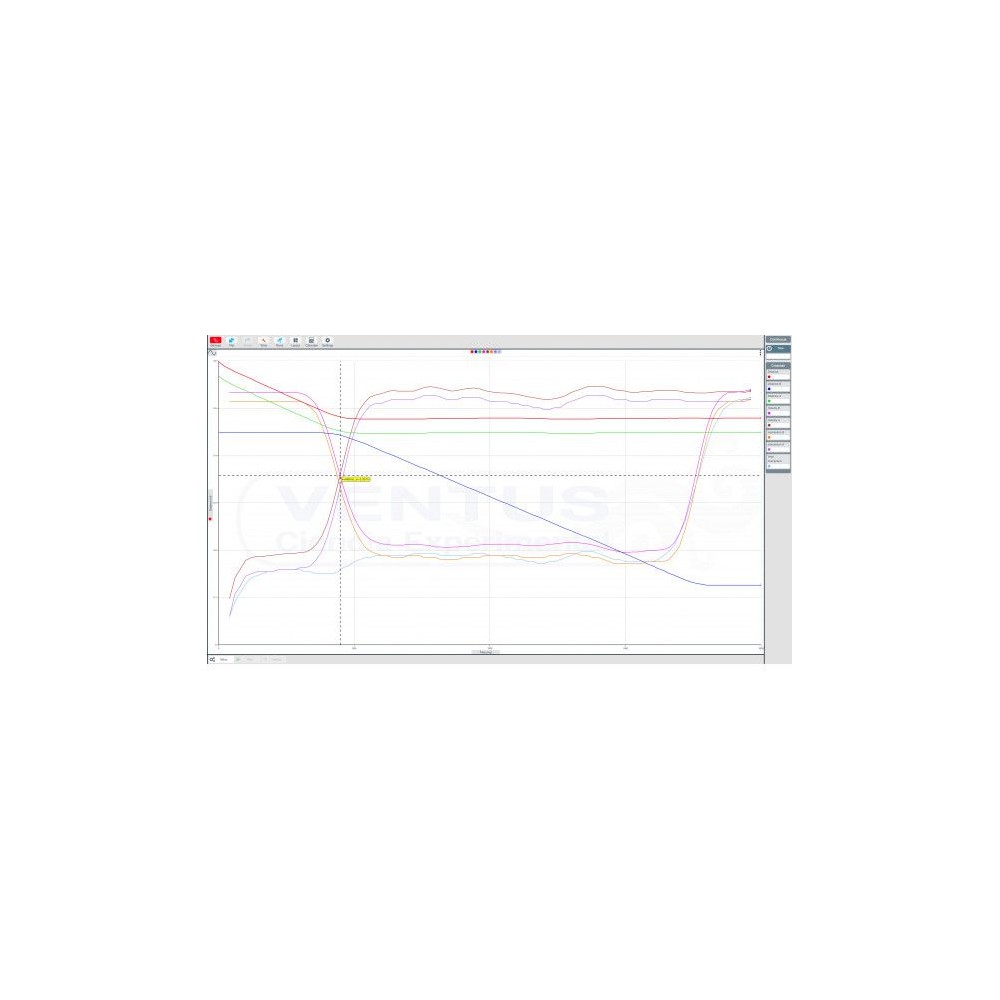

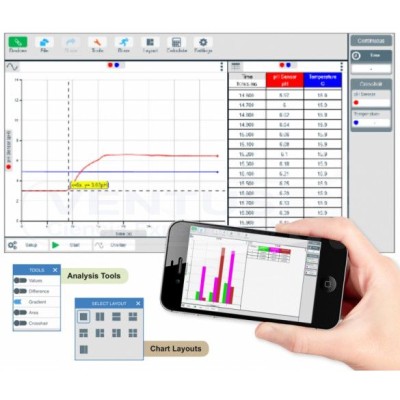

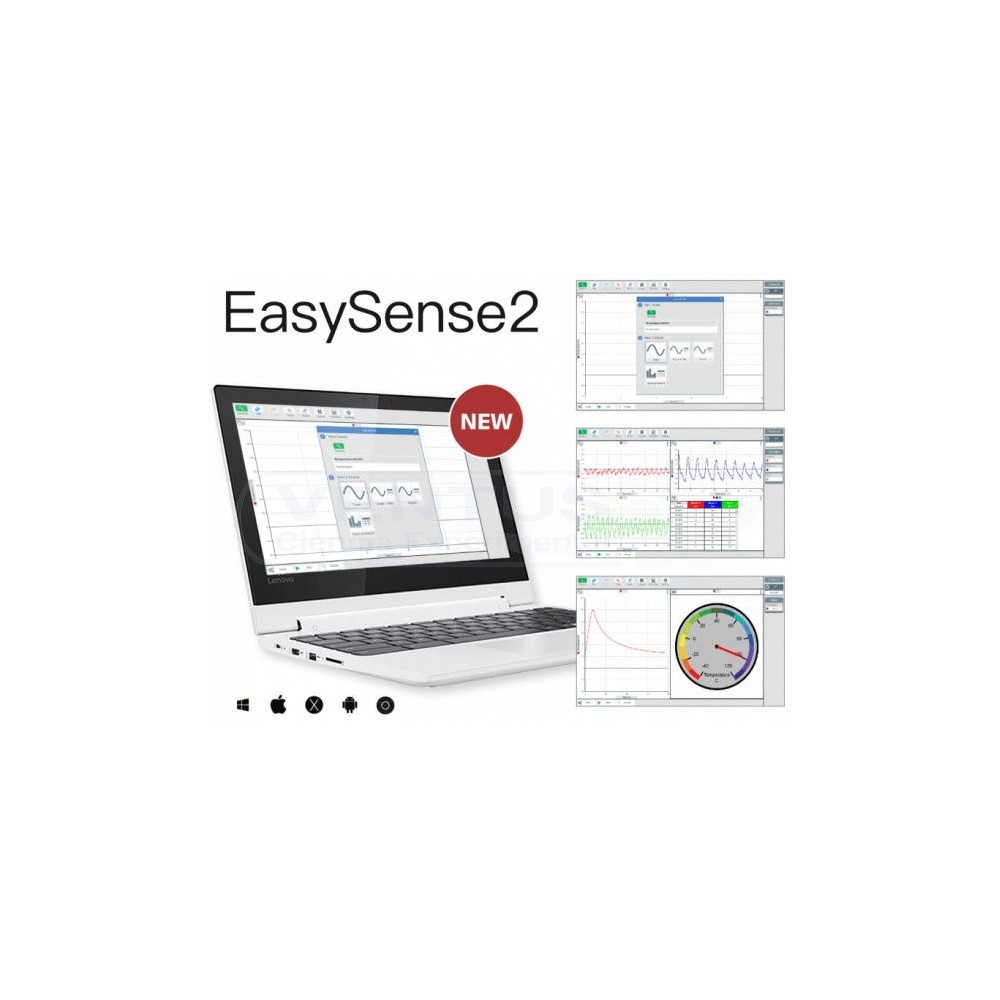

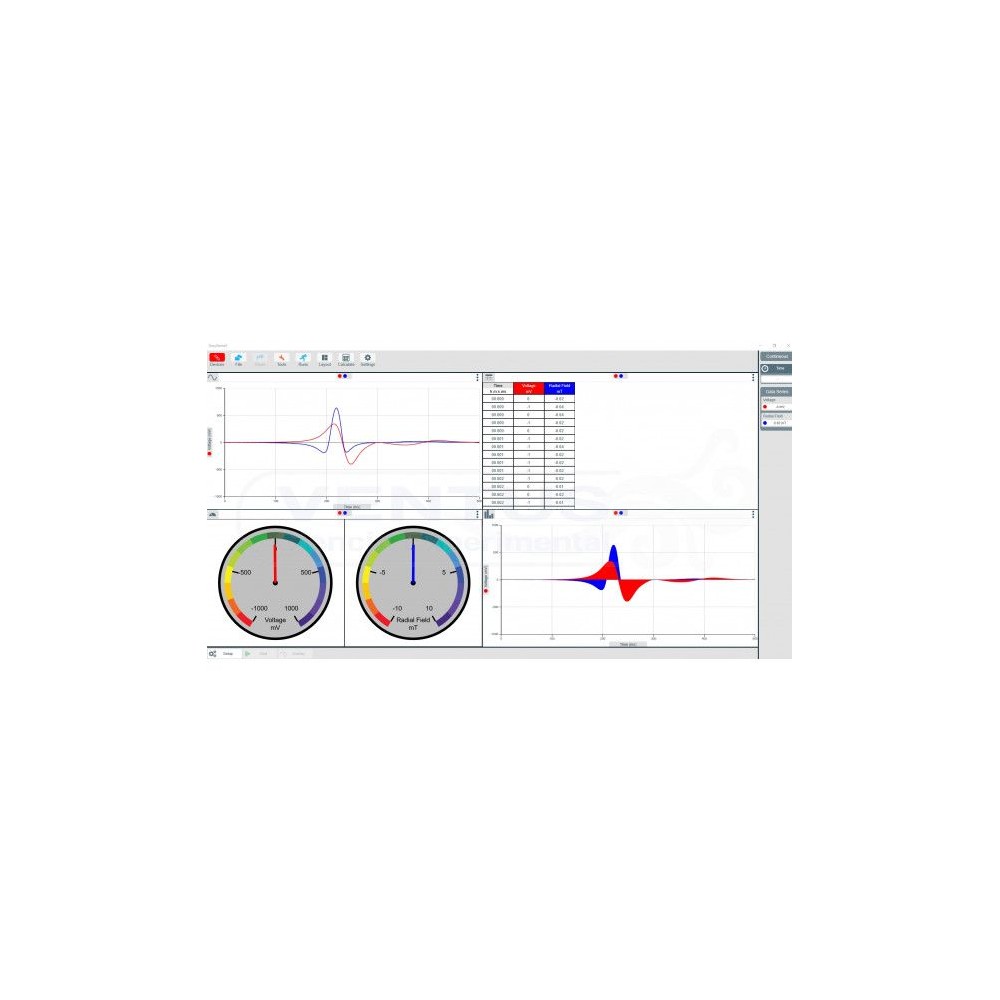

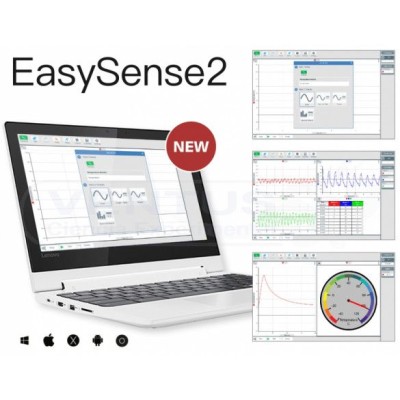

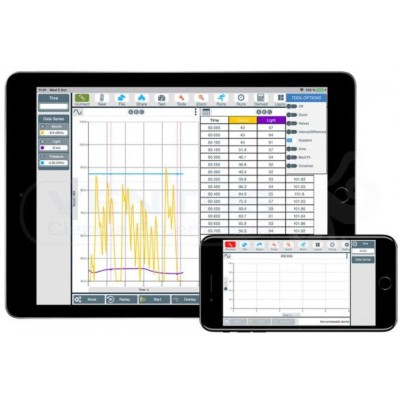

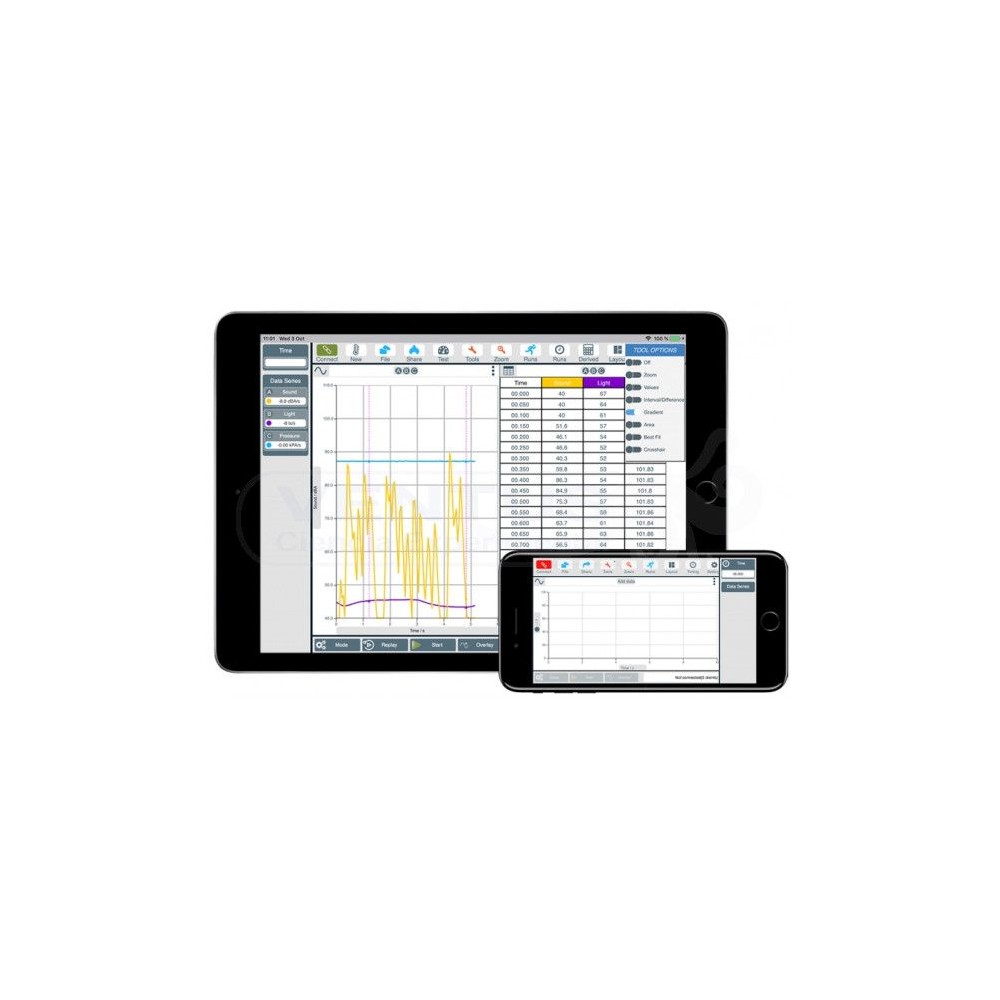

Free downloadable software for Windows PC, Apple Mac OSX, Apple iOS, Google Android & Chrome.
Additionally, the SmartQ sensors of your interest are required.
