Microscopi contrast fases Bscope BS-1153-PPLPHi. Triocular 100x-1000x
Microscopi contrast fases Bscope BS-1153-PPLPHi. Triocular 100x-1000x
  • Microscopi contrast fases Bscope BS-1153-PPLPHi. Triocular 100x-1000x
  • Microscopi contrast fases Bscope BS-1153-PPLPHi. Triocular 100x-1000x
Referència: 10031

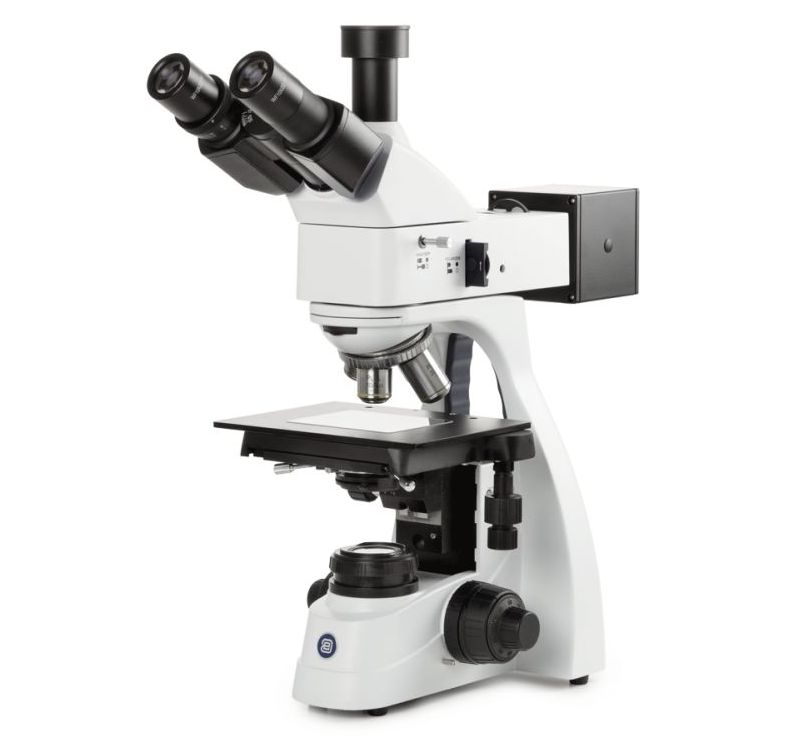

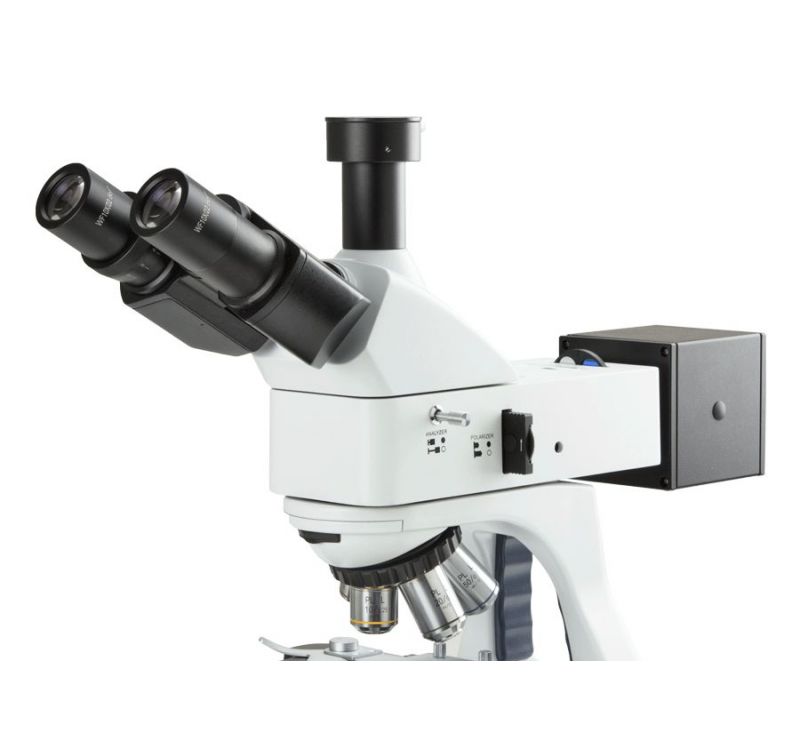

Bscope BS-1153-EPL/DF dark field microscope. Trinocular 40x-1000x

1780.00€ Base imp.
2153.80€ amb IVA
Quantity


Free shipping

from €120 + VAT


Shipping

in 24 - 72 hours


Payment

Visa or PaypalCard - Paypal - Transfer - Direct Debit

  • HWF10x/22 mm eyepieces.
    Trinocular head, inclined 30º, inter-pupillary distance between 48 and 75 mm. Diopter correction in left eyepiece holder.
    Quintuple objective holder revolver mounted with ball bearings. Oriented inwards.
    Objectives corrected to infinity (IOS) M planes 5x/0.12, 10x/0.25, 20x/0.40 and 50x/0.70. 45 mm para-focals.
    Movable stage of 185 x 140 mm. with X-Y displacement of 74 x 48 mm. Without rack in the 1.25 adjustable in height by rack and pinion with iris diaphragm and 32 mm filter holder ring. diameter.
    Coarse and micrometric focusing control on coaxial axis. Micrometric with 180 divisions, 1.1 microns per division, 0.2 mm. by micrometer rotation. Total displacement of approximately 18 mm. With voltage adjustment and stage height limit to protect high magnification objectives and the observed sample.
    3 W NeoLED Köhler transmitted illumination with adjustable intensity. Optional rechargeable batteries. Internal power supply.
    3W NeoLED Köhler incident lighting with external power supply, with iris and field diaphragm. With polarizer and analyzer and filter holder wheel (green, blue, yellow and white).
    Supplied in a styrofoam box with a protective case and instruction manual.
10031

Data sheet

Visió
Trinocular
