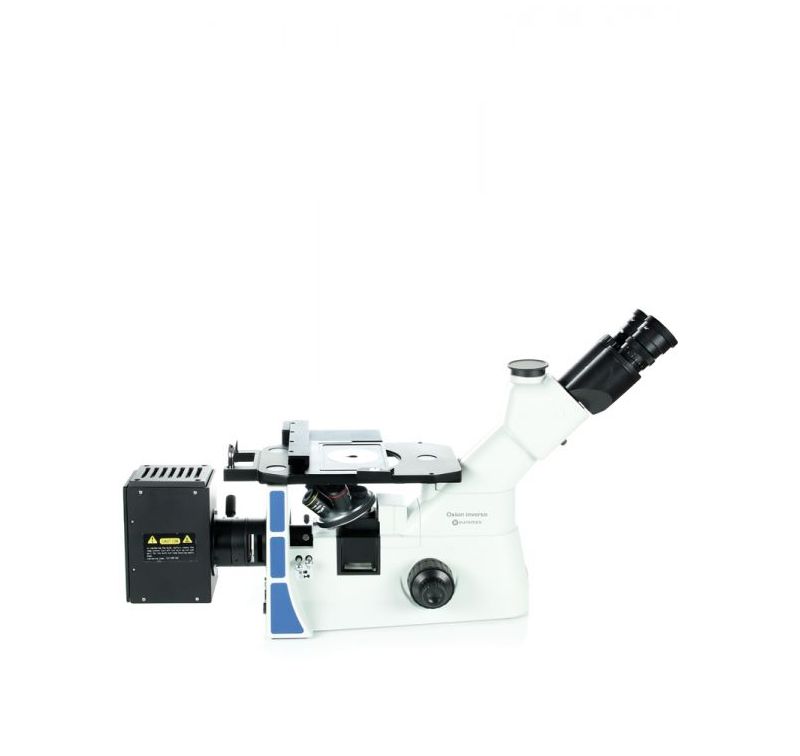

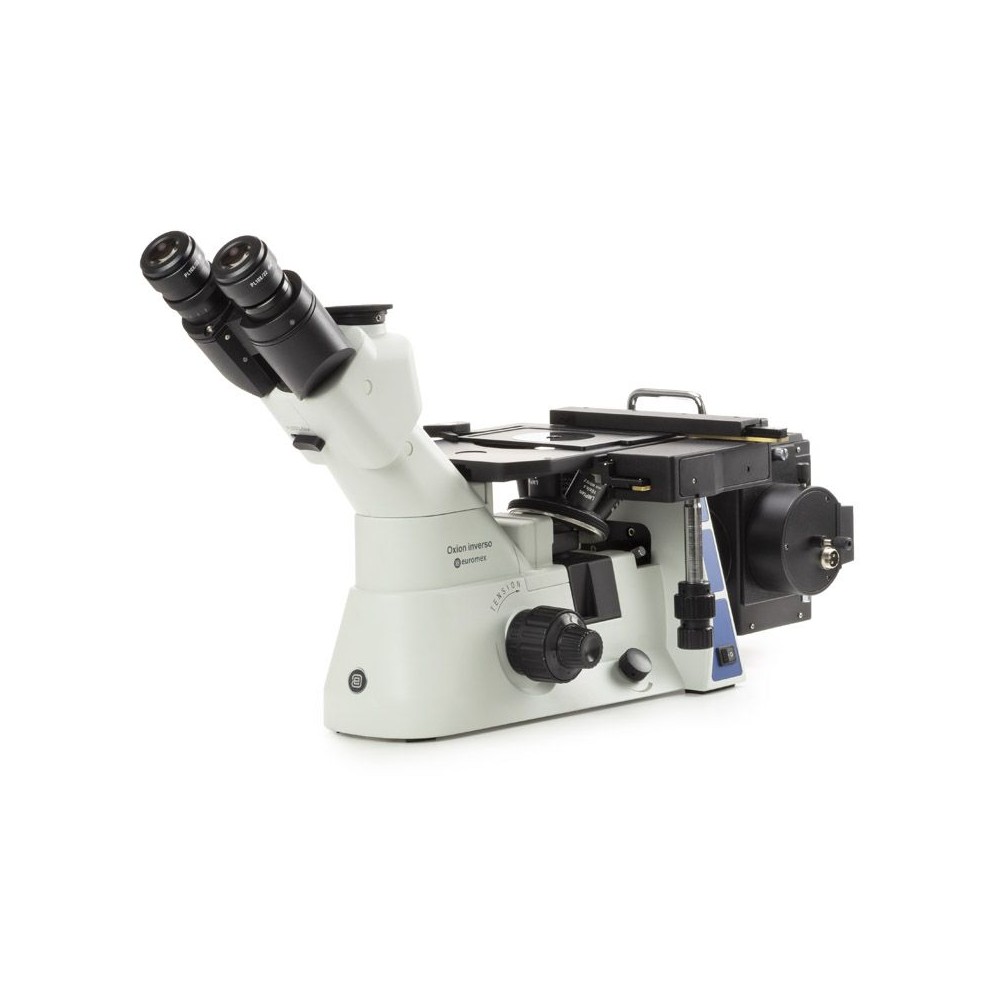

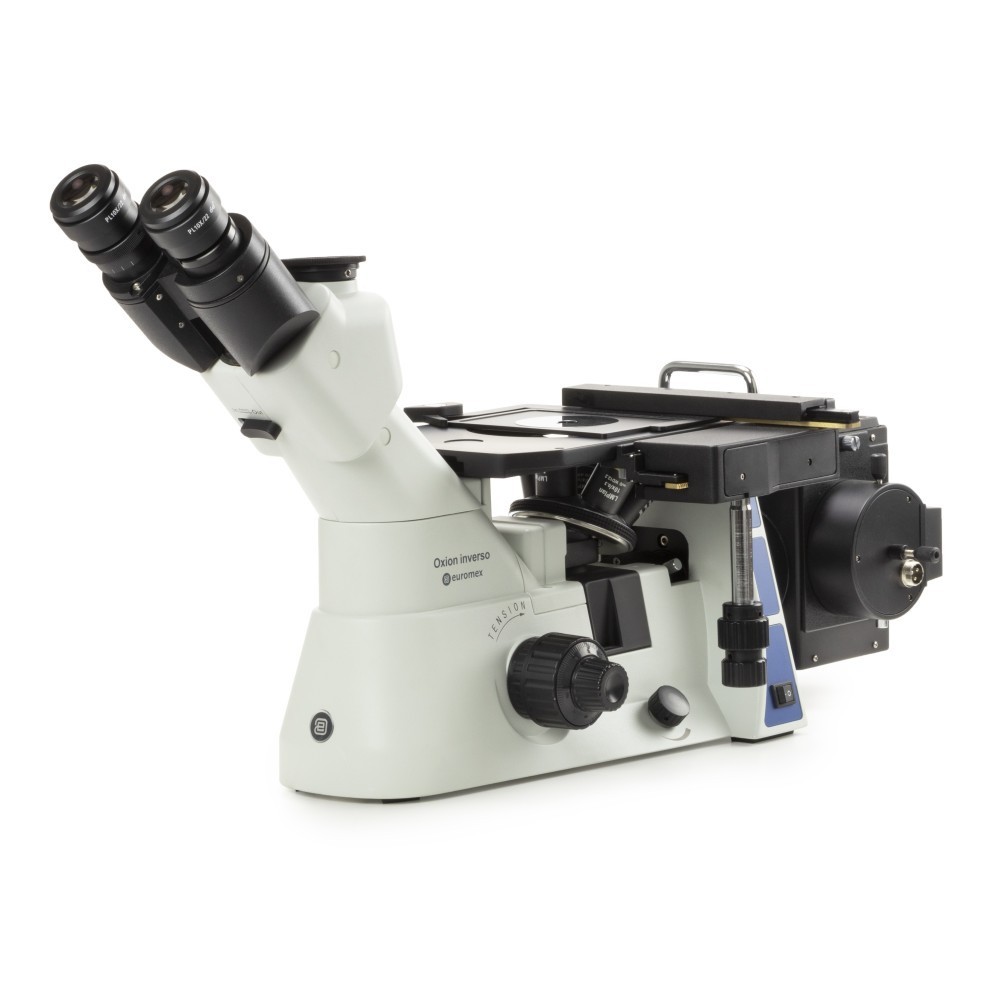

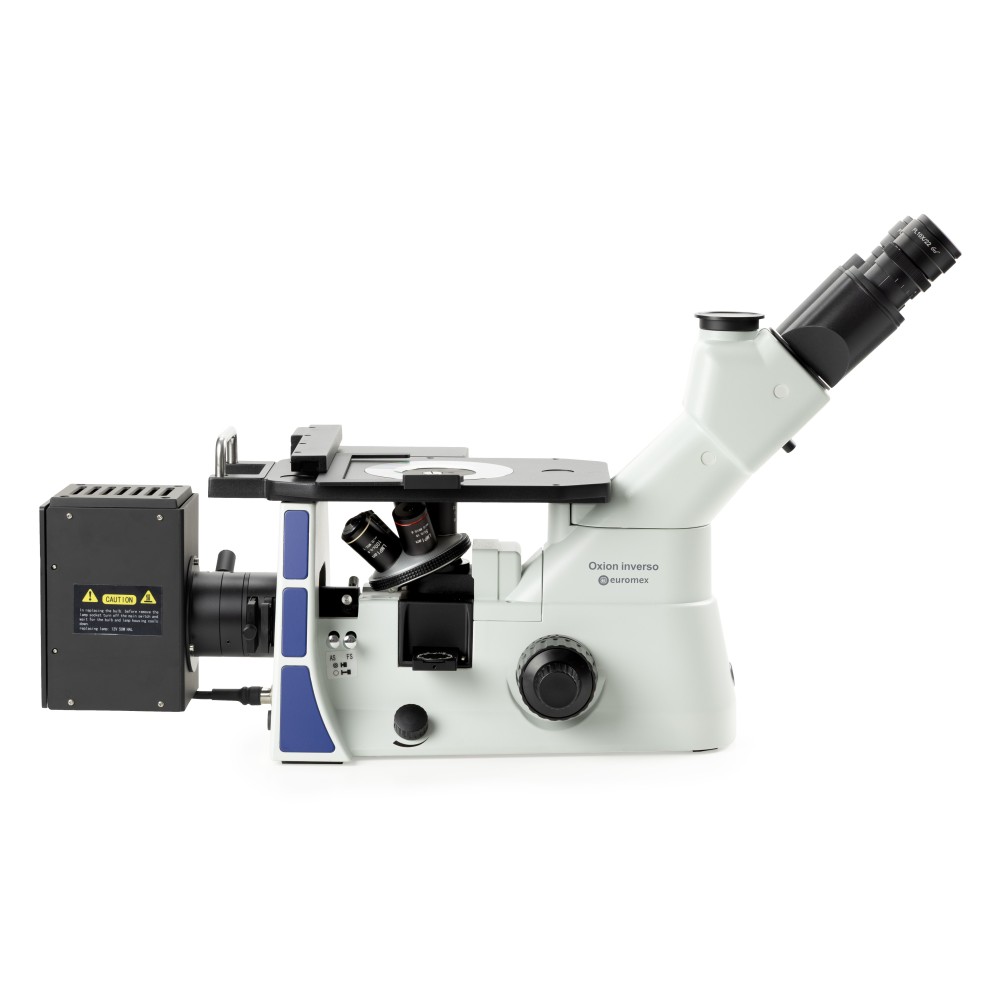

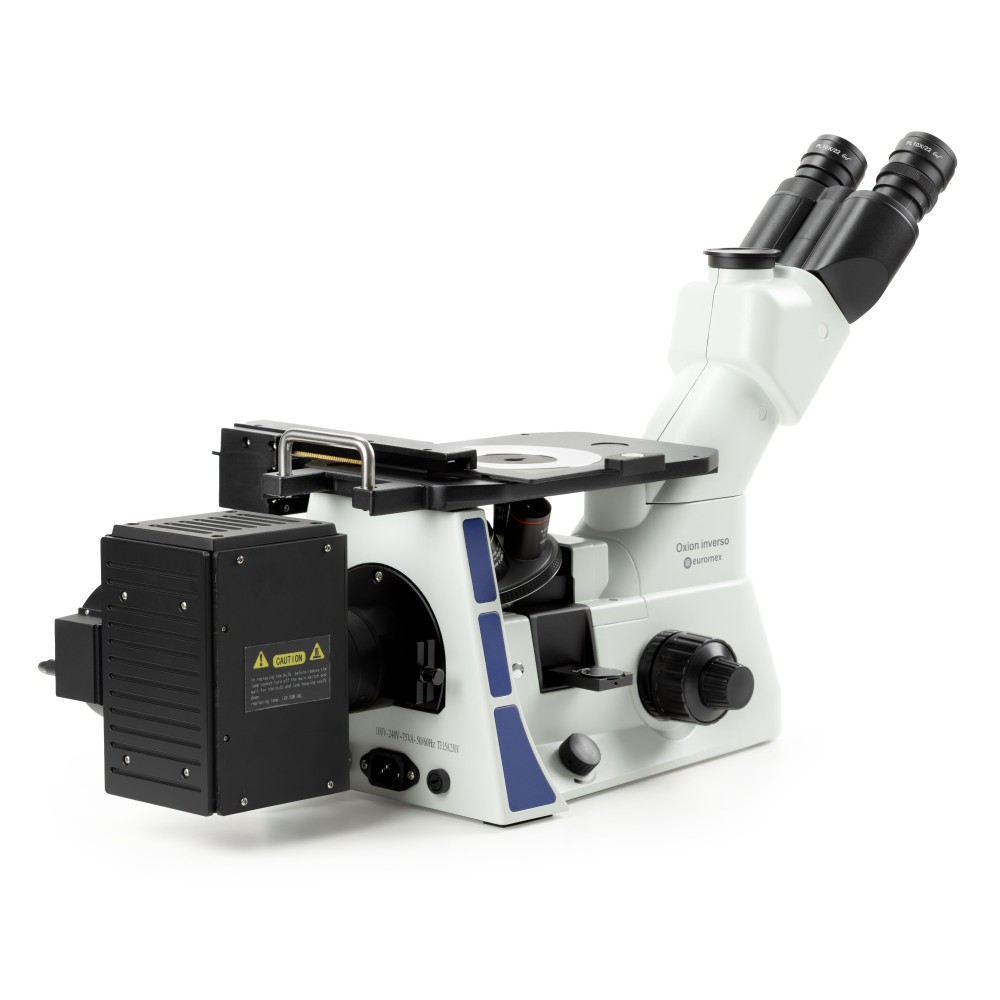

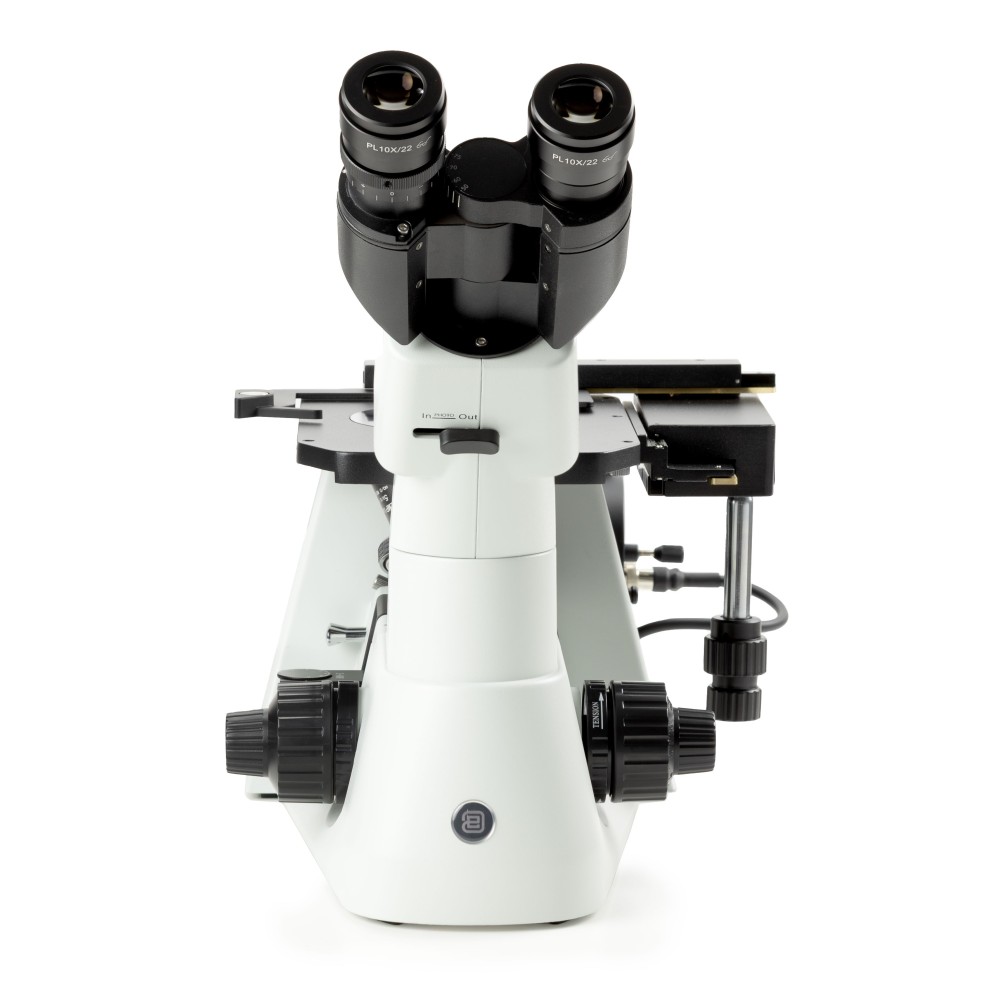

Oxion OX-2653-PLM metallographic microscope. Triocular 50x-500x
Referència: 20409

Oxion OX-2653-PLM metallographic microscope. Triocular 50x-500x

Reverse Oxion for Materials Science (Inverted Stage Metallographic)

Marca: Euromex

2.922,00€ Base imp.
3.535,62€ amb IVA
Quantity


Free shipping

from €120 + VAT


Shipping

in 24 - 72 hours


Payment

Visa or PaypalCard - Paypal - Transfer - Direct Debit

Eyepieces
Pair of DIN Flat HWF10x/22 mm eyepieces.

OBJECTIVE HOLDING REVOLVER
Five-fold objective-carrying revolver in a folded lateral position and mounted on high-precision ball bearings.

HEAD
Trinocular with eyepiece tubes inclined at 45° and high and low observation position. Diopter correction in the left eyepiece holder. Adjustable interpupillary distance between 54 and 75 mm. Light deviation 100-0% and 80-20%.

OBJECTIVES
Infinity corrected (IOS) long working distance plano-achromatics 5x/0.15, 10x/0.14 and 20x/0.45 and semi-apochromatic plane S50x/0.55 long working distance and infinity corrected (IOS). The OX.2153-PLM also includes a long working distance S100x/0.80 semi-apochromatic flat objective with infinity correction (IOS). Not corrected for 0.17 mm coverslips.

All optical components have anti-mold treatment and anti-reflection layer treatment for maximum light transmission.

PLATE
Large format 250 x 230 mm. Equipped with a 120 x 78 mm X-Y displacement mobile carriage. through controls on the vertical coaxial axis. Supplied with: - Metal support with Ø 12 mm hole. and metal support with Ø 25 mm hole. adaptable directly to the stage without mobile carriage
- Metal support with hole that adapts to the mobile carriage.

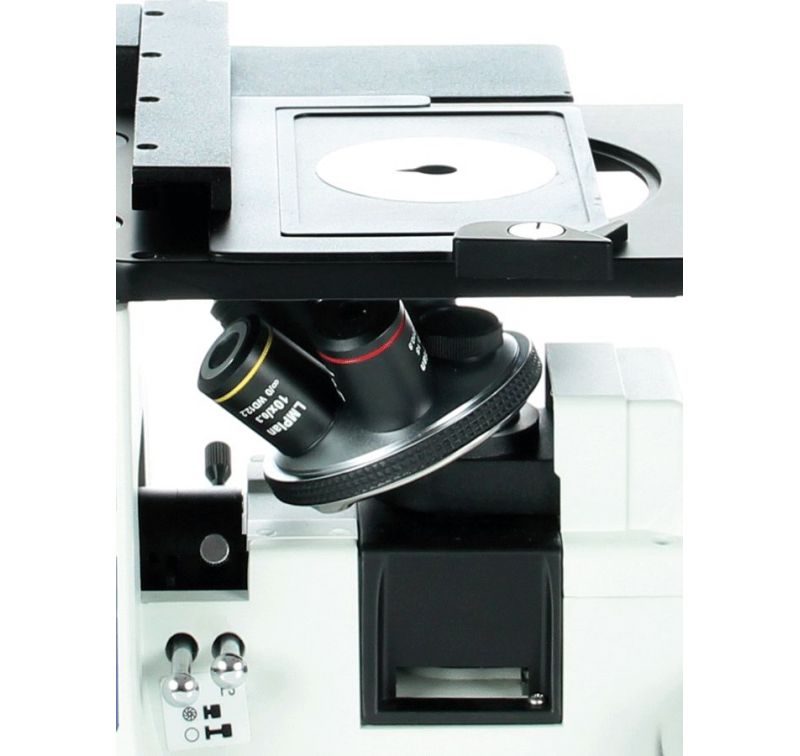

(Photograph): Large format stage with X-Y mobile carriage.

CONDENSER
Condenser lens for Köhler system with iris diaphragm and centerable field.

FOCUS

Macro and micrometric on coaxial axis. Micrometer precision 2 µm, total displacement 25 mm. With tension adjustment.

LIGHTING
Köhler design using 50W halogen lamp with adjustable intensity and internal 100-240 Vac power supply. Fuse holder 3.15A/250V

POLARIZATION
With polarization filter and analyzer with 360° rotation.

FILTERS
Blue and green supplied as standard.

CONFIGURATIONS
The Oxion microscope is available in a large number of configurations and also allows upgrades with a wide variety of optional accessories.

• Models with bright field • Models with phase contrast • Models with dark field • Models with inverted stage (for life sciences)
• Metallographic model • Metallographic models with inverted stage (for science of materials) • Models with epi-fluorescence

PACKAGING

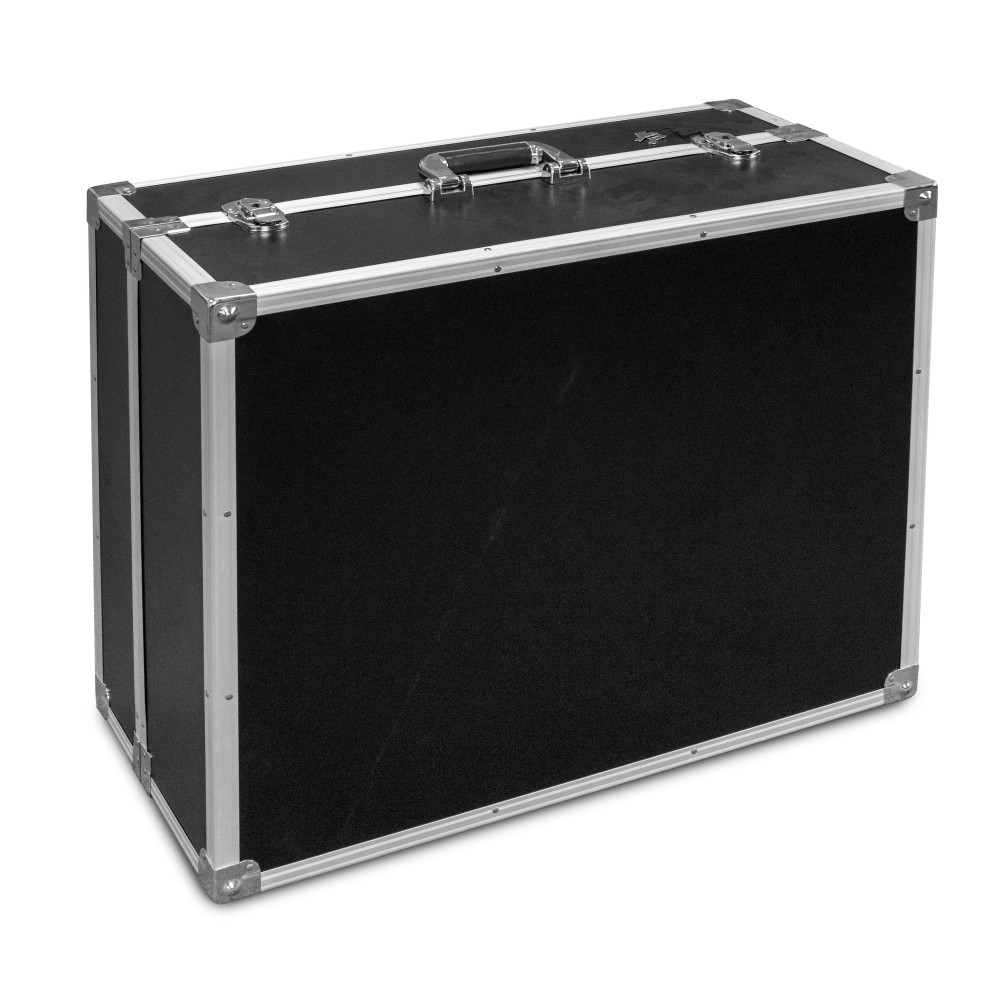

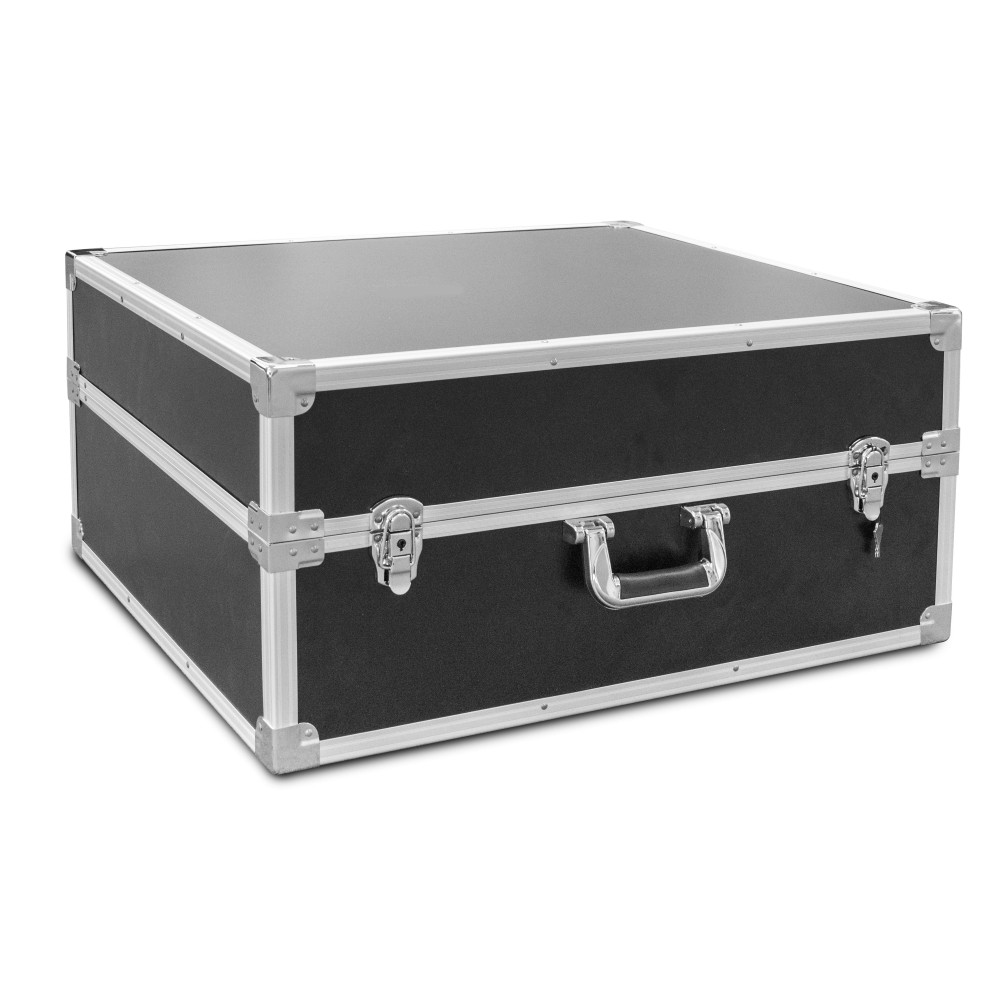

Supplied with power cable, protective cover, spare fuse, blue and green filters, user manual. Supplied with aluminum case.
