Microscopi contrast fases Iscope IS-1153-PLPHi. Triocular 100x-1000x
Referència: 20399

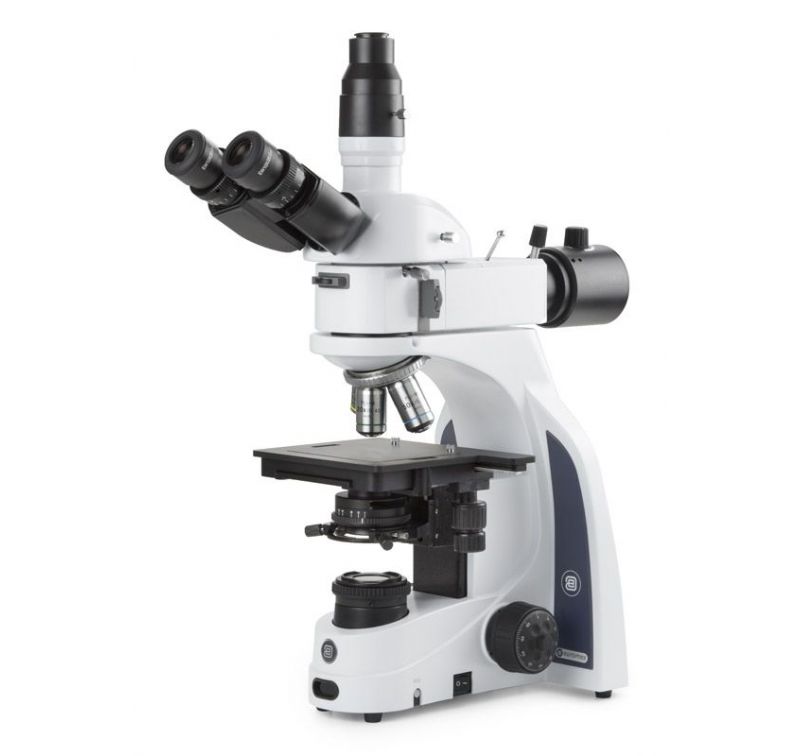

Iscope IS-1053-PLMi metallographic microscope. Triocular 100x-1000x

2572.00€ Base imp.
3112.12€ amb IVA
Quantity


Free shipping

from €120 + VAT


Shipping

in 24 - 72 hours


Payment

Visa or PaypalCard - Paypal - Transfer - Direct Debit

EWF10x/20 mm eyepieces. 30 mm eyepiece holder. diameter.
Trinocular head, inclined 30º, inter-pupillary distance between 48 and 76 mm. Diopter correction in both eyepiece holders.
Quintuple objective holder revolver mounted with ball bearings. Oriented inwards.
Objectives corrected to infinity (IOS) M planes 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.70. 45 mm para-focals.
Movable stage of 150 x 140 mm. with X-Y displacement of 78 x 53 mm. Without rack in the 1.25 adjustable in height by rack and pinion with iris diaphragm and slot for optional blades.
Coarse and micrometric focus control on coaxial axis. Micrometric with 200 divisions, 1 micron per division, 0.2 mm. by micrometer rotation. Total displacement of approximately 24 mm. With voltage adjustment and stage height limit to protect the high-magnification objectives and the observed sample.
Transmitted illumination 3 W NeoLED Köhler with adjustable intensity. Internal power supply.
NeoLED incident lighting with adjustable intensity. External power supply. With 0-90º polarizer.
iCare sensor that turns off the microscope lighting when the user leaves their position. CSS-Cable Storage System. Allows you to wind the cable on the back of the microscope for easy storage.
Supplied in a styrofoam box with a protective cover, spare fuse, power cable, 5 ml bottle of immersion oil. and instruction manual.

20399

Data sheet

Visió
Trinocular
