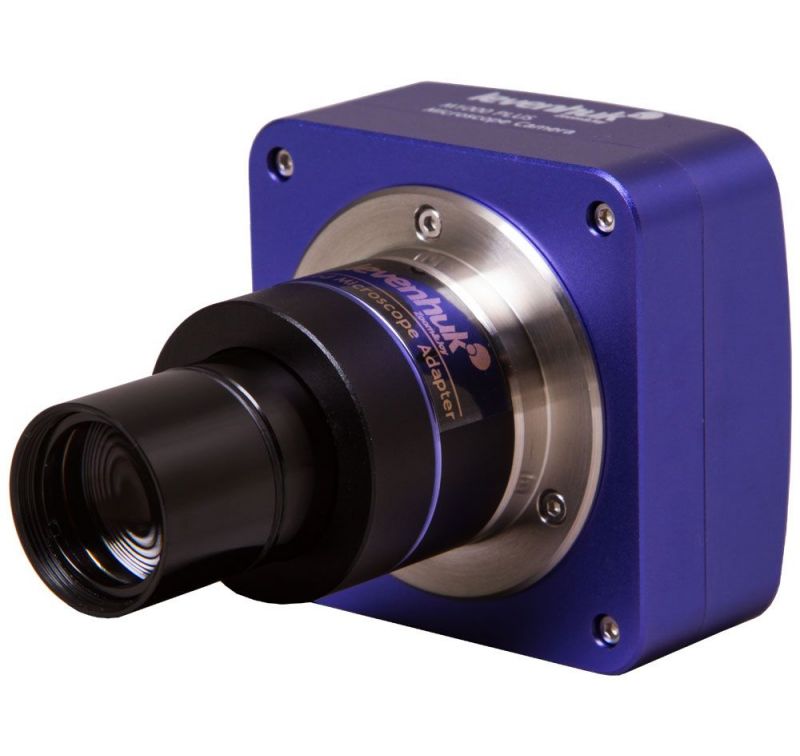

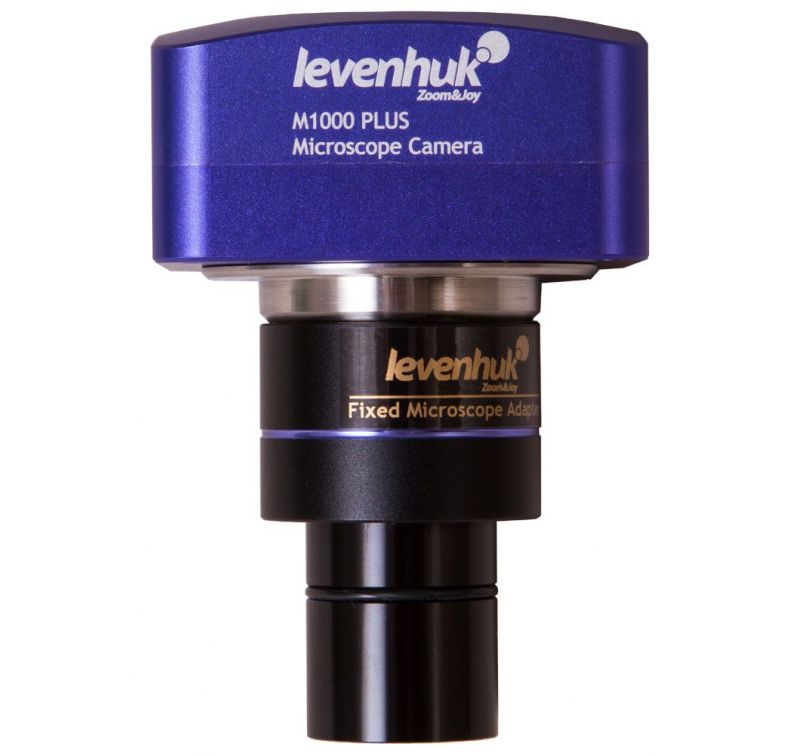

Levenhuk M-1000 digital camera. USB connection. Resolution 10.0 Mp

40821
Levenhuk

380.00 €(tax excl.)
459.80 € (tax incl.)

Compatible with Windows, Mac and Linux

Enviament gratuït
des de 120€ + IVA
Enviament en
24 - 72 h
Pagament
Visa o Paypal
Domiciliació
Transferència

The Levenhuk M1000 PLUS is a digital microscope camera that will impress you with its sharp, high-contrast images. Its strong magnifications will allow you to study very small structures and observe the life of tiny microorganisms. This 10 Mpx camera will allow you to take photos and record videos with a resolution of up to 3584x2748 pixels. It has a maximum frame rate of 53 fps, enough for videos to appear sharp and without image skips.

The camera works with biological and stereo microscopes from all manufacturers. Adapters are included with the product so that you can use the camera with optical tubes of different diameters. With a standard USB cable, the camera is connected to a desktop or laptop computer to display the image formed on the lens on its screen. Levenhuk's software will allow you to take and record images in real time and process them later. Levenhuk M1000 PLUS digital camera is suitable for home use, studio and professional observations.

It is delivered with a CD that contains special software to edit the images you have previously saved: enlarge them, cut them, change the contrast, etc.

Make sure your computer meets the necessary system requirements. Compatible with Mac OS, Linux, Windows.

In the event that the software does not run on your computer, please contact us and indicate your operating system and its version (for Linux: platform and kernel version).

Levenhuk software language:
Windows: English, German, Russian, French, Polish, Turkish, Simplified Chinese, Traditional Chinese
Mac: English
Linux: English

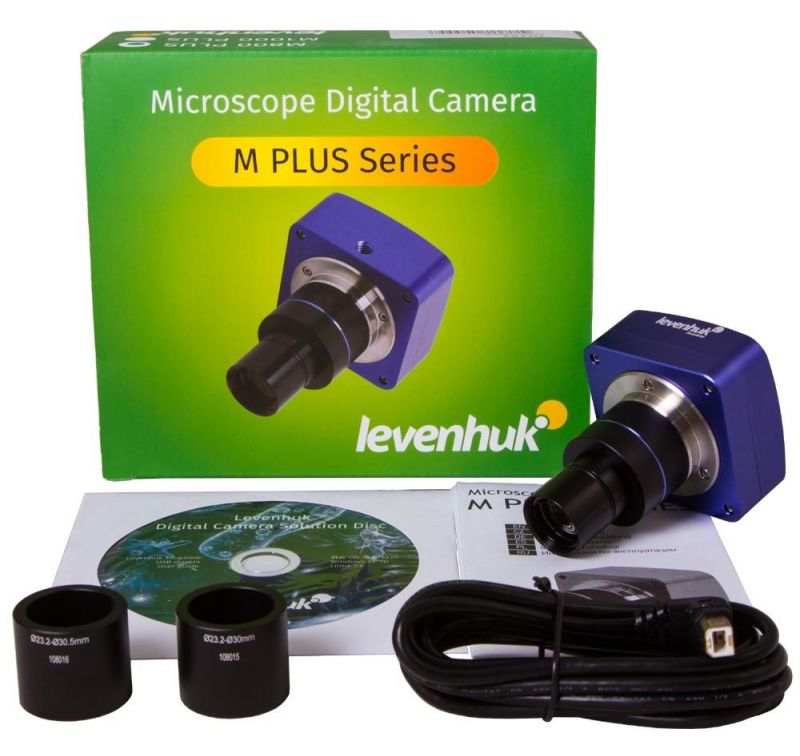

The kit includes:

  • Levenhuk digital camera
  • 23.2 mm adapter
  • 2 adapters for microscopes with different eyepiece tube diameters (23.2–30 mm, 23.2–30.5 mm)
  • USB cable to charge and connect to PC
  • Installation CD (setup wizard, drivers, software)
  • Instruction manual and lifetime warranty
Specifications
Max. resolution (static images), pixels3584x2748
Megapixels10
Sensor1/2.3" CMOS
Pixel size, μm1.55x1.55
Sensitivity, v / lux.sec 550 nm0.31
Exposure time, ms0.4–2000
Video recordingyes
Speed, frames per second3.3@3584x2748
12@1792x1374
53@896x684
Active range, dB65.2
The place of installationeyepiece tube measures 23.2 mm (the camera is installed in place of the eyepiece)
Photo format*.jpg, *.bmp, *.png, *.tif
Video formatrecording: *.wmv, *.avi, *.h264 (Win 8 or later), *.h265 (Win 10 or later)
Spectral range, nm380–650 (a built-in infrared filter)
Interface exposureERS
White balanceauto/manual
Exposure controlauto/manual
Programmable optionsimage size, brightness, white balance, exposure control, etc.
Camera slotUSB 2.0, 480 Mb/sec.
System RequirementsWindows XP (32-bit), Windows Vista/7/8/10/11 (32-bit or 64-bit), Mac OS X, Linux, IntelCore 2 CPU or higher; RAM 2GB, USB port 2.0, CD-ROM
SoftwareLevenhuk
Bodymetal
Camera power supplyvia USB 2.0
Operating temperatures–10... 50°C; 14... 122°F
