TPM-1 oil quality meter. Scale 0'0-50'0% TPM

50001

490.00 €(tax excl.)
592.90 € (tax incl.)

Includes transport and storage case

Memory: 10,000 records

Enviament gratuït
des de 120€ + IVA
Enviament en
24 - 72 h
Pagament
Visa o Paypal
Domiciliació
Transferència

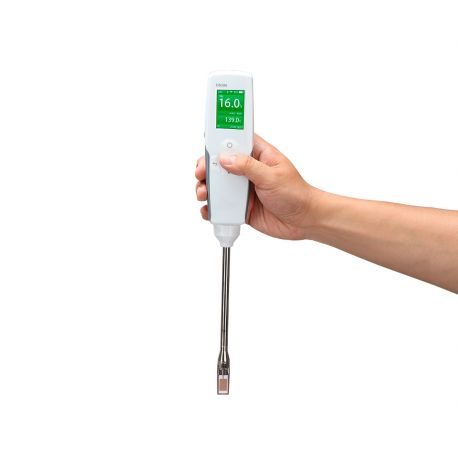

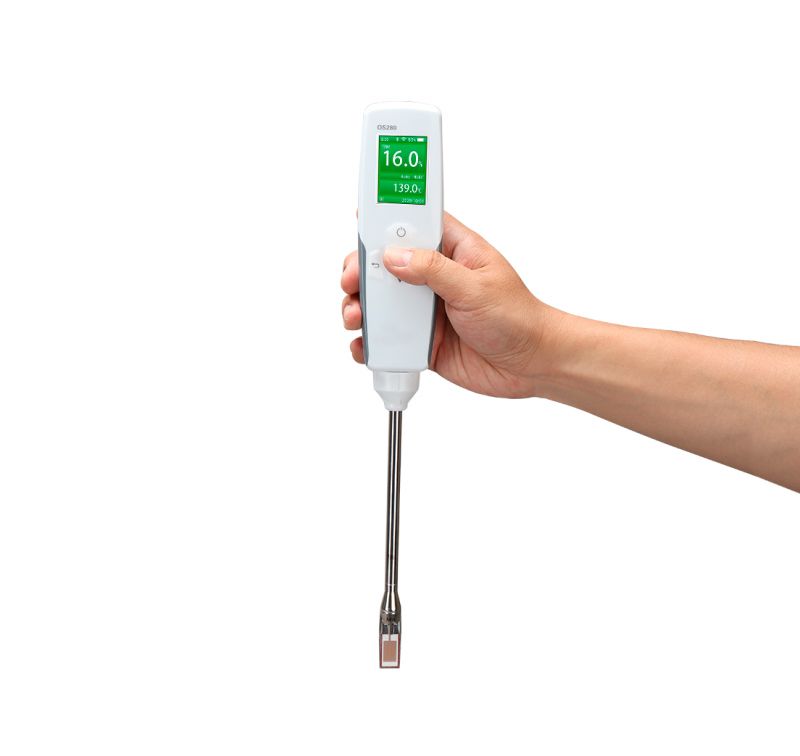

The TPM 1 is a unique tool, capable of guaranteeing oil quality in a matter of seconds, by measuring the polar components.

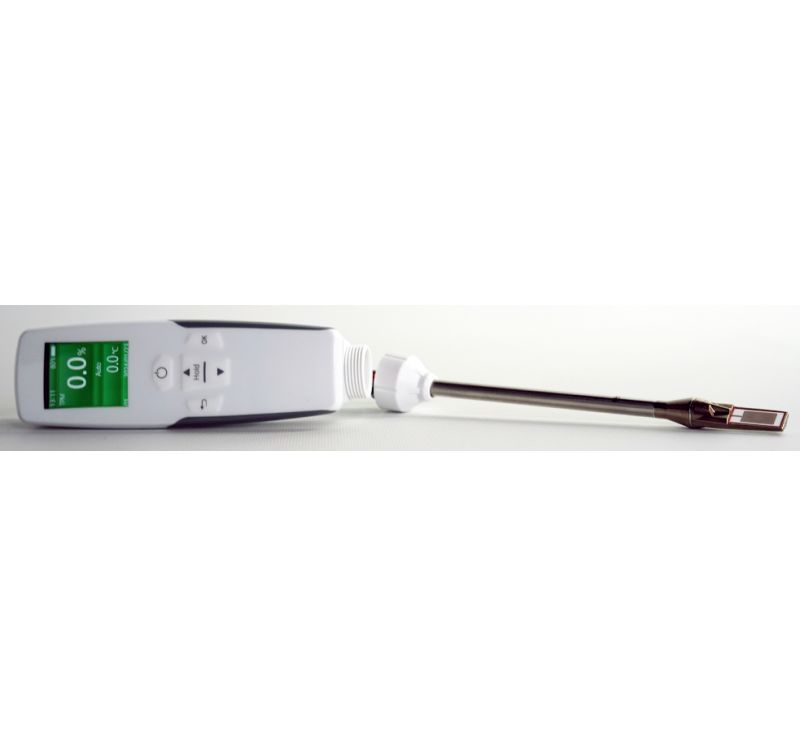

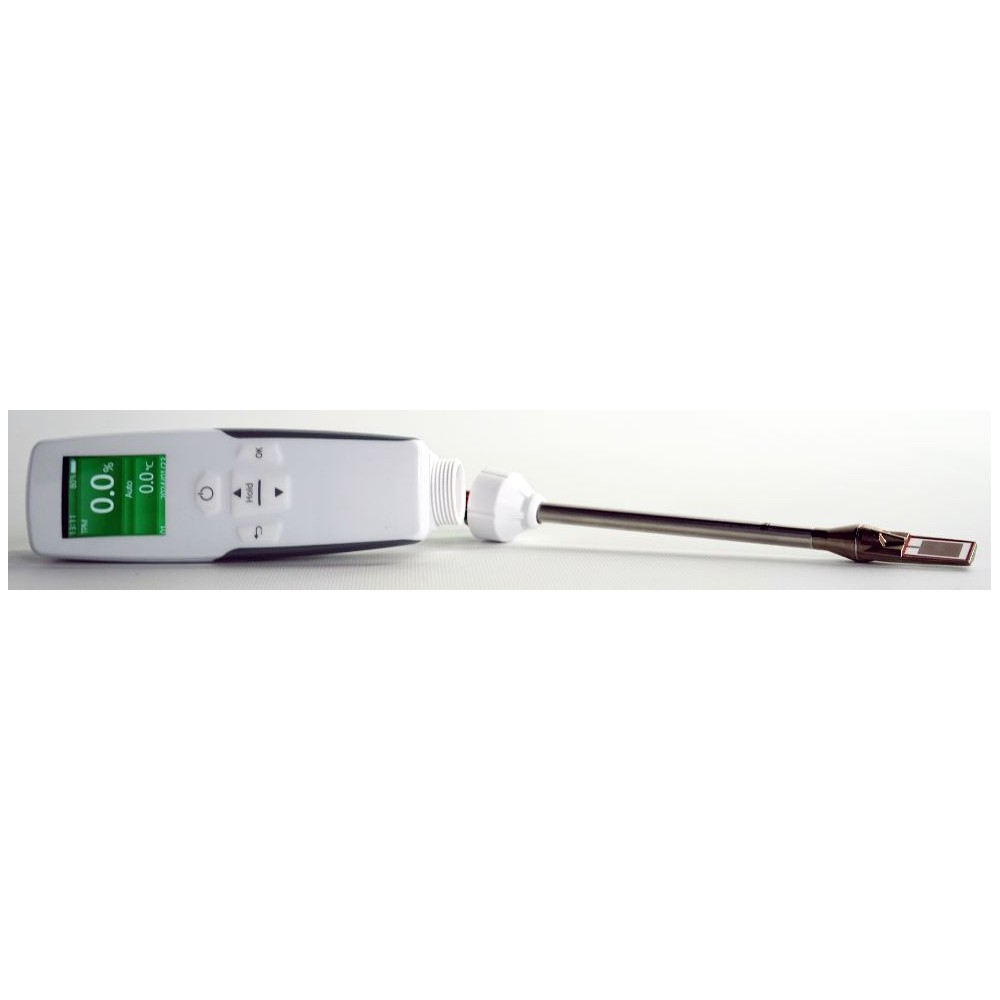

  • Replaceable probe: the only one that allows the sensor to be changed to maximize the useful life of the equipment.
  • IP68 ergonomic design: Resistant housing with a high degree of protection, which allows the equipment to be washed with running water
  • Speed of analysis: the fastest on the market, with a response time of approx. 10 seconds

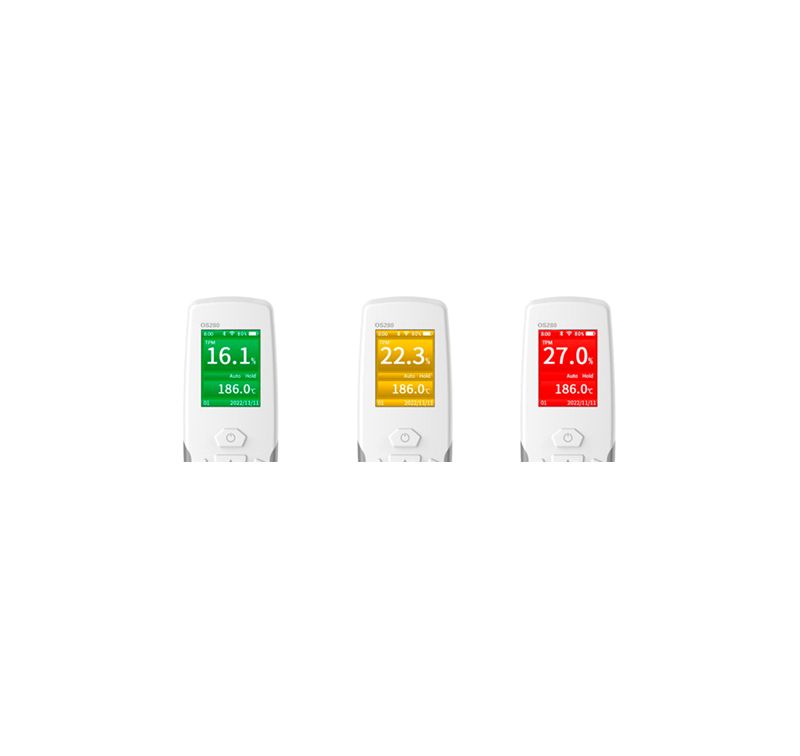

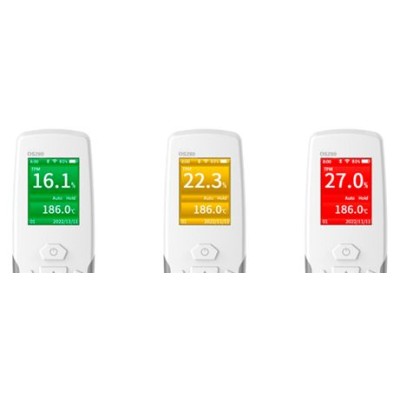

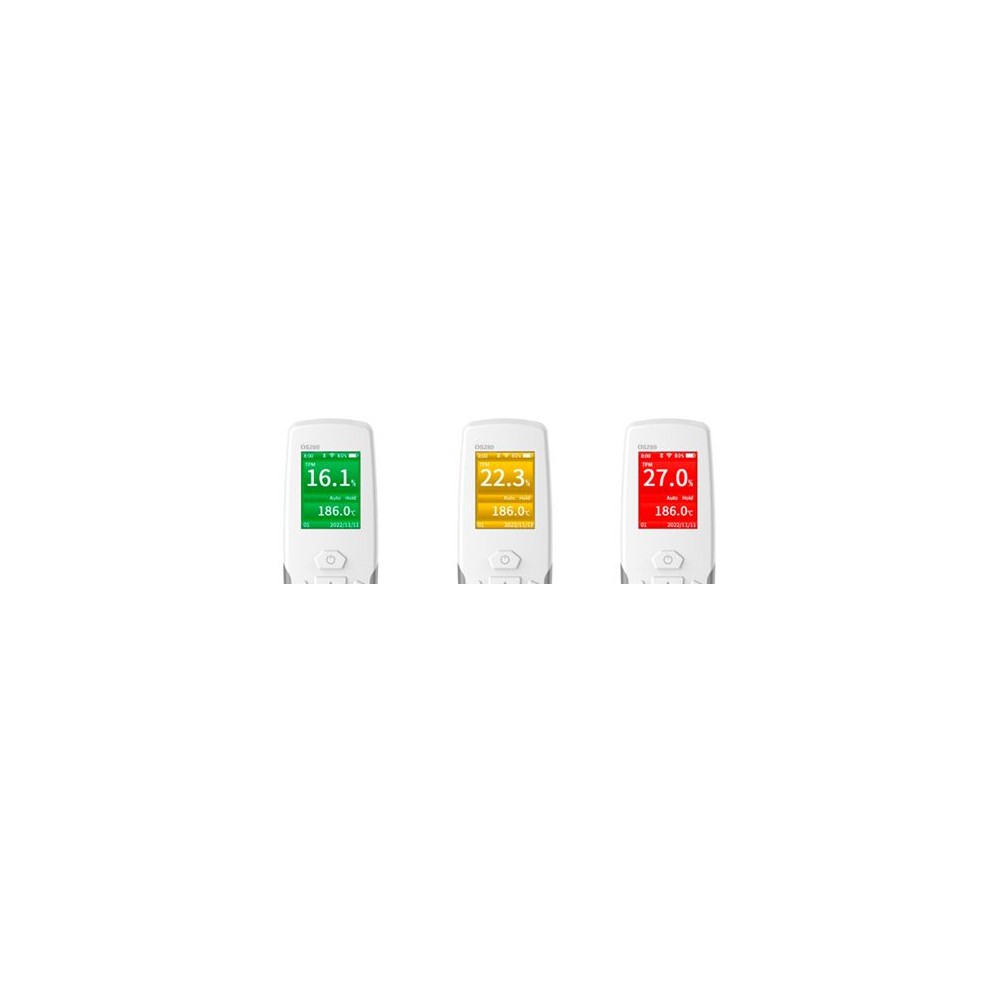

  • Simple and intuitive operation:  screen background in green, red and yellow depending on the oil status. Allows decision making at a glance.
  • Audible alarm: Default, lower limit 22% and upper limit 27% TPM.

And also the only one with:

  • GLP: datalogger for 10,000 records

Technical characteristicsTPM 1
Temperature scale0...200ºC
Resolution / Accuracy± 0.1ºC / ± 1ºC
TPM Scale0...50% TPM
TPM Accuracy± 2% TPM (40...190ºC)
Adjustable TPM resolution0.1% (factory value) and 0.5
Temperature sensorPTC sensor
TPM SensorCapacitive sensor
TPM response timeApprox. 10 sec.
Status alarm LEDGreen, orange, red
Audible alarmDefault, lower limit 22%
Operating temperature0...50ºC
Storage temperature-40...+70 ºC
LPGYear, month, day, hour and minute
