Referència: 25010

Oscilloscope table Peaktech P-1341. USB-LAN channels 4x100 MHz

Marca: Peak Tech

847,00€ Base imp.
1.024,87€ amb IVA
Quantity


Free shipping

from €120 + VAT


Shipping

in 24 - 72 hours


Payment

Visa or PaypalCard - Paypal - Transfer - Direct Debit

  • 4-channel oscilloscope with 100 MHz analog bandwidth with a maximum sampling rate of 1 GS/s
  • 20 cm (8") TFT color display, 800 x 600 pixels
  • LAN and USB connection for data transfer
  • USB host function for external USB data carriers
  • Self-tuning function for ease of use
  • Maximum record length of 40 million points
  • Automatic measurement modes and FFT function
  • Optional battery: "Akku 6" model
  • Safety: EN 61010-1; CAT II 400V
  • Accessories: USB cable, Windows software CD, power cable, 4 probes, BNC cable, carrying case and manual

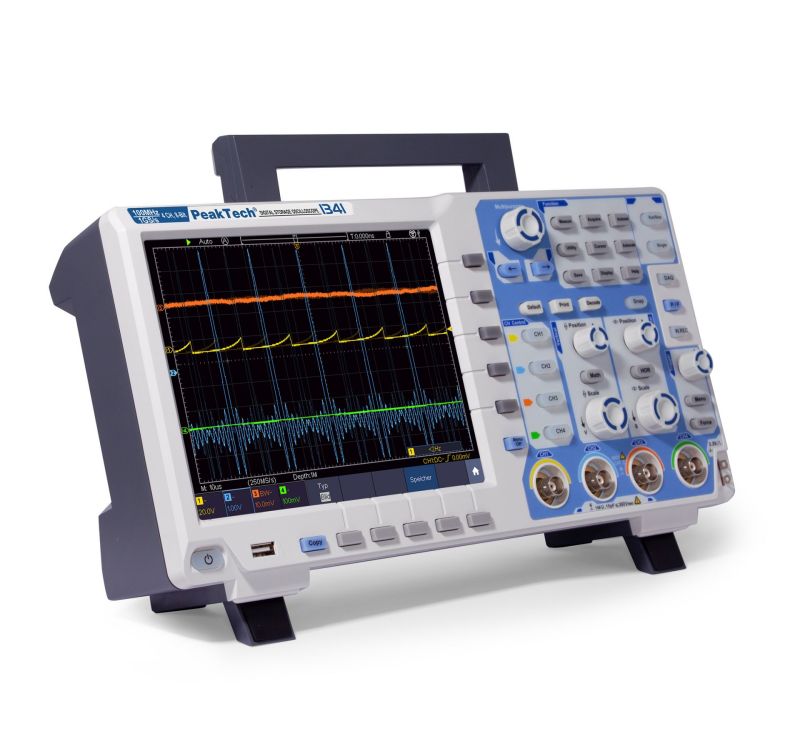

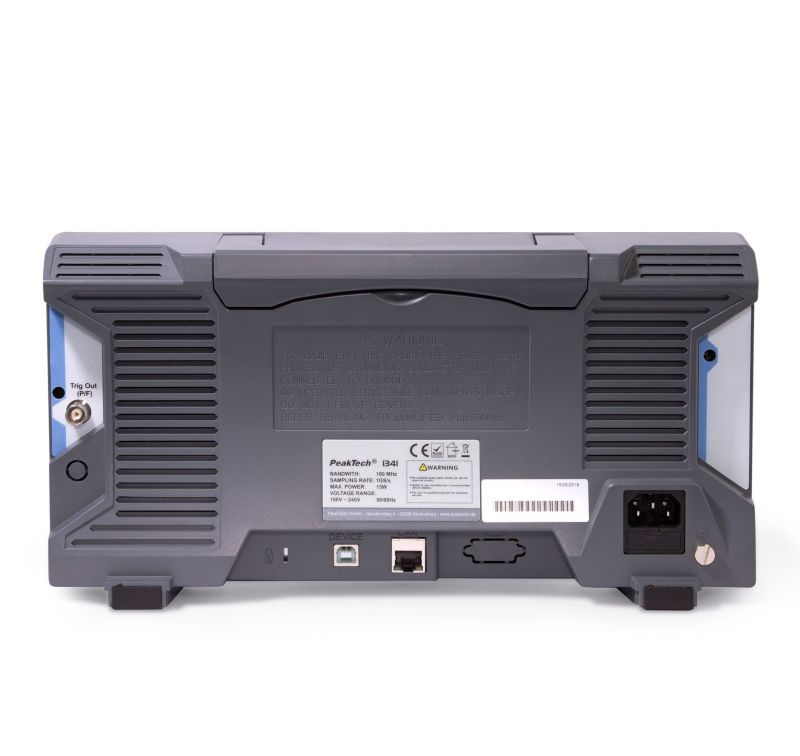

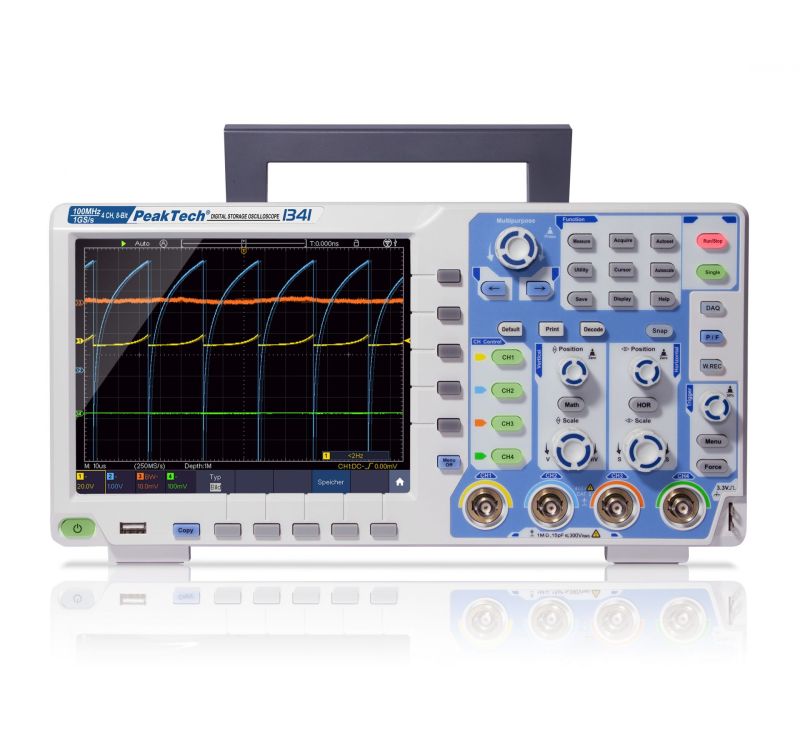

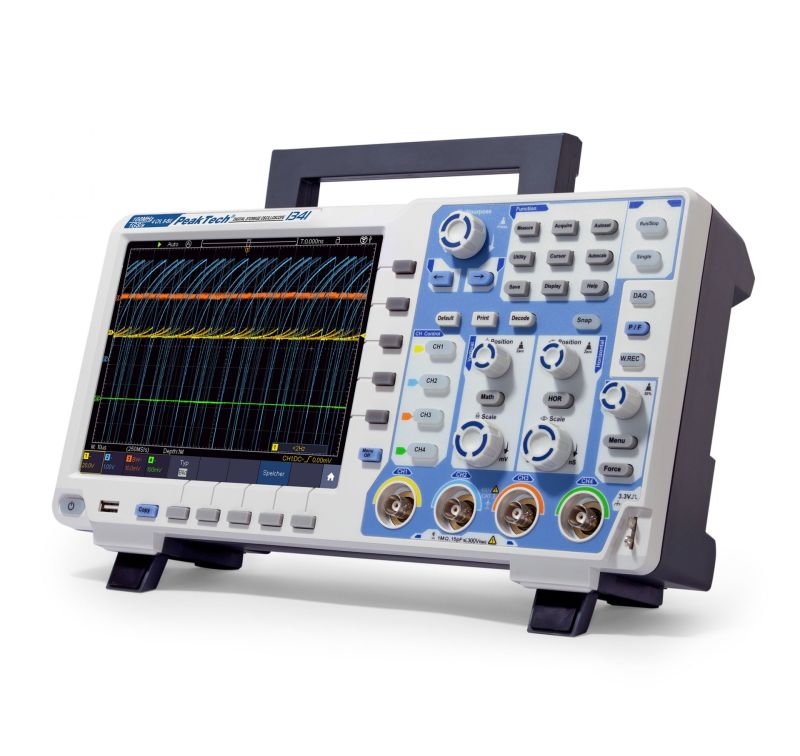

Product information "PeakTech® P 1341» Digital Storage Oscilloscope 100MHz/4CH 1GS/s"

The PeakTech 1341 is a state-of-the-art 100 MHz, 4-channel digital storage oscilloscope with a high-resolution TFT color display and a large number of additional functions. It has a sampling rate of up to 1 GS/s and presents high quality and easy handling, with the best price-performance balance. All models in this series have XY mode and FFT function, as well as an integrated frequency counter. The information can be transferred to a PC via LAN or USB connection. The device can be used portable, with the possibility of adding an optional battery that allows the oscilloscope to operate for a whole working day without connection to the mains, while the waveforms can be stored on a USB pendrive.
