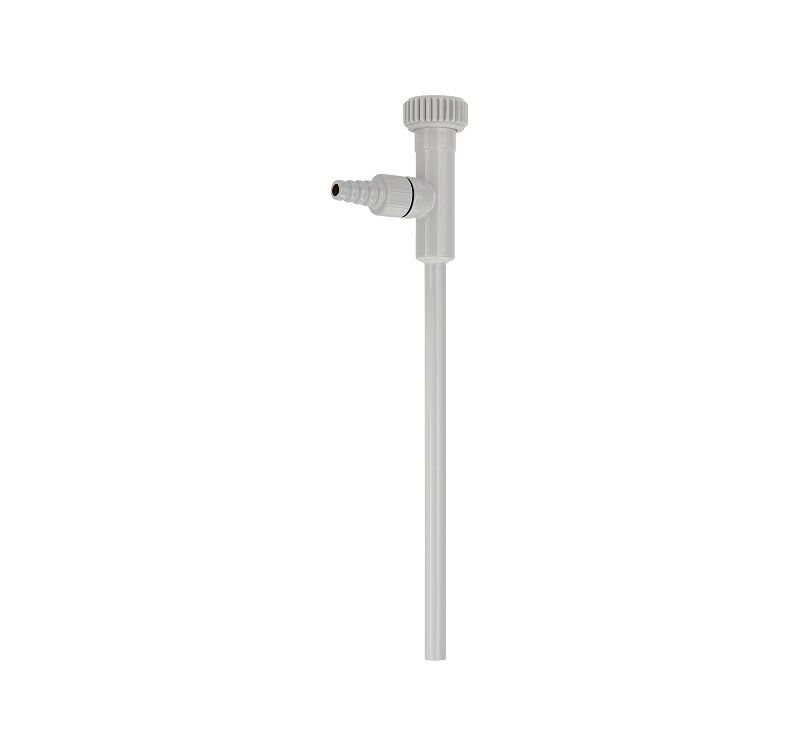

CA-133 lined brass water horn. Obtaining the vacuum

Necessary:Description: To obtain vacuum and suck up liquids and vapors.

TECHNICAL CHARACTERISTICS
Drive medium: Water
Connection to the water supply network: ISO 228 G1/2" union nut
Connection of vacuum: ISO 228 G1/4" fitting nozzle external diameter 8-10 mm
Outlet: 8 x 1 mm tube (not supplied)

Main materials: Brass
Anti-corrosive plastic coating:
Polyamide 250-300 microns thick, color light gray RAL 7035

Options without price supplement:
- Dark gray RAL 7001
- White
- Black
